31-12B  WINDSHIELD ASSEMBLY FOR CJ-2A

DMC-663628

CALL

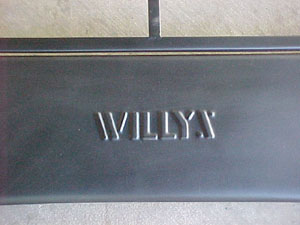

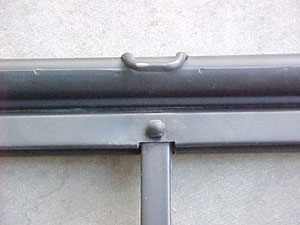

  DETAIL OF "WILLYS" LOGO     DETAIL OF TOP BOW RETAINER AND
BACK STOP BUMPER BRACKET



  DETAIL OF WINDSHIELD ADJUSTING
ARM

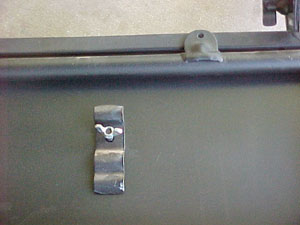

`   DETAIL OF LOOP FOR WINDSHIELD
HOLD-DOWN STRAP


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
DMC 663628



 WINDSHIELD ASSEMBLY, LATE TYPE WITH "WILLYS" STAMPED ON PANEL.



  CJ-2A CALL
RPL 663626-R



 WINDSHIELD ASSEMBLY, LATE TYPE, PLAIN PANEL.



  CJ-2A CALL
RPL A-2255

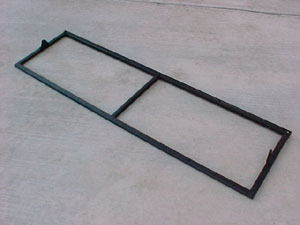

 INNER WINDSHIELD FRAME, EARLY STYLE WITH STUDS FOR ADJUSTING ARM.



  CJ-2A CALL
RPL 663694



 INNER WINDSHIELD FRAME, LATE STYLE.



  CJ-2A CALL
RPL 663671



ARM, WINDSHIELD ADJUSTING, EARLY STYLE, SLOTTED, 2 REQD.



  CJ-2A $ 16.50 EA.
RPL A-3761



KNOB, WINDSHIELD ADJUSTING ARM
EARLY STYLE, 2 REQD.



  CJ-2A $ 9.50 EA.
RPL A-4547-K



KIT, WINDSHIELD ADJUSTING ARM PIVOT SCREW, 2 REQD. INCLUDES SPECIAL SCREW, SPRING WASHER AND FLAT WASHER.

 CJ-2A $ 1.95 EA.
NOS 664283 NOS



 ARM, WINDSHIELD ADJUSTING, ASSEMBLY, LATE SYLE, 2 REQD.

  CJ-2A $ 48.50 EA.
T/O 663707



 ARM, WINDSHIELD ADJUSTING, INNER,
 2 REQD.

  CJ-2A $ 22.50 EA.
T/O 663712



ARM, WINDSHIELD ADJUSTING, OUTER,
 2 REQD.

  CJ-2A $ 22.50 EA.
NOS 663705 NOS



SCREW, WING, WINDSHIELD ADJUSTING ARM, 2 REQD.

  CJ-2A $ 17.50 EA.
NOS 663706 NOS



 WASHER, SPRING, WINDSHIELD, ADJUSTING ARM, 2 REQD.

  CJ-2A $ 16.50 EA.
RPL A-3721



 BRACKET, PIVOT, WINDSHIELD, ASSY., 2 REQD.



  CJ-2A $ 16.50 EA.
OEM 53066-K



 MOUNTING KIT, WINDSHIELD PIVOT BRACKETS, WITH GRADE 8 HARDWARE

  CJ-2A $ 2.50
RPL A-2220



WASHER, SPRING, WINDSHIELD PIVOT, 2 REQD.

  CJ-2A $ 1.75 EA.
RPL A-3755



 THUMB SCREW, WINDSHIELD PIVOT, 2 REQD.



  CJ-2A $ 15.50 EA.
RPL 668921



 BOLT, WINDSHIELD PIVOT, 2 REQD.



  CJ-2A $ 8.50 EA.
RPL 663677



 CLAMP, WINDSHIELD ASSY., 2 REQD.



  CJ-2A $ 62.50 EA.
T/O A-3763



CATCH, WINDSHIELD CLAMP, 2 REQD.



  CJ-2A $ 18.50 EA.
RPL 664793

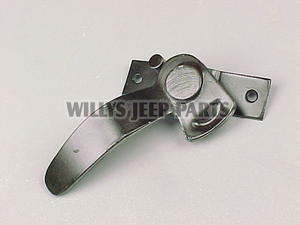

 LOCK, CENTER, INNER WINDSHIELD.



  CJ-2A $ 68.50
RPL 663198



 RETAINER, STORAGE, CENTER TOP BOWS, 2 REQD, INCLUDES MOUNTING HARDWARE, MADE IN THE USA.

  CJ-2A $ 18.50 EA.
OEM 668388



STRAP, WINDSHIELD HOLD DOWN TO GRILLE

  CJ-2A $ 22.50
NOS 663269 NOS



 STUD, SINGLE TWIST TYPE, WINDSHIELD TOP FASTENER, #7 SCREW, 10 ON TOP OF WINDSHIELD, 2 ON LOWER PANEL, USA COMMON SENSE BRAND.

  CJ-2A $ 8.50 EA.
OEM 664261

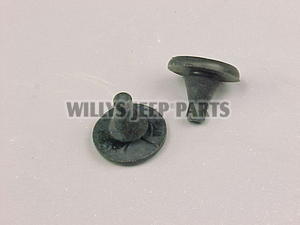

BUMPER, INNER WINDSHIELD BACKSTOP,
 2 REQD.

  CJ-2A $ 3.50 EA.
OEM A-2479



 PADDING, WINDSHIELD GLASS, (EVERSEAL, 1/16" THICK) 74" LONG.

  CJ-2A $ 12.50
OEM A-2480-K



INSTALLATION KIT, INNER WINDSHIELD GLASS FRAME TOP. INCLUDES THE SPECIAL SCREWS, ACORN NUTS AND LOCKWASHERS. THIS KIT IS USED WHEN REPLACING THE PADDING A-2479 ABOVE.

CJ-2A $ 5.25
OEM A-2250



 WEATHERSTRIP, INNER WINDSHIELD FRAME TO OUTER WINDSHIELD FRAME, 6 1/2' FOR COMPLETE INSTALLATION.

  CJ-2A $ 22.50
OEM A-2476



WEATHERSTRIP, WINDSHIELD FRAME TO COWL.

  CJ-2A $ 46.50
OEM A-2489-K



INSTALLATION KIT, FOR WEATHERSTRIP A-2476 LISTED ABOVE.

 MB/GPW $ 4.25


  A-2255

CALL

    663694

CALL




  663671

$ 16.50

    A-3761

$ 9.50




  A-4547-K

$ 1.95

    664283

$ 48.50




  663707

$ 22.50

    663712

$ 22.50




  663705

$ 17.50

    663706

$ 16.50




  A-3721

$ 16.50

    53066-K

$ 2.50




A-2220

$ 1.75 EA.

A-3755

$ 15.50



  668921

$ 8.50

    663677

$ 62.50




  A-3763

$ 18.50

    664793

$ 68.50




  663198

$ 18.50

    663388

$ 22.50




663269-NOS

$ 8.50 EA.

664261 $ 3.50 EA.



A-2479 $ 12.50
A-2480-K $ 5.25


A-2250 $ 22.50

A-2476 $ 46.50

A-2489-K $ 4.25


PLEASE REFER TO SUB-GROUP 15-20 FOR WINDSHIELD WIPERS
