10-11C ENGINE CAMSHAFT AND TIMING GEARS FOR THE F-4-143 ENGINE

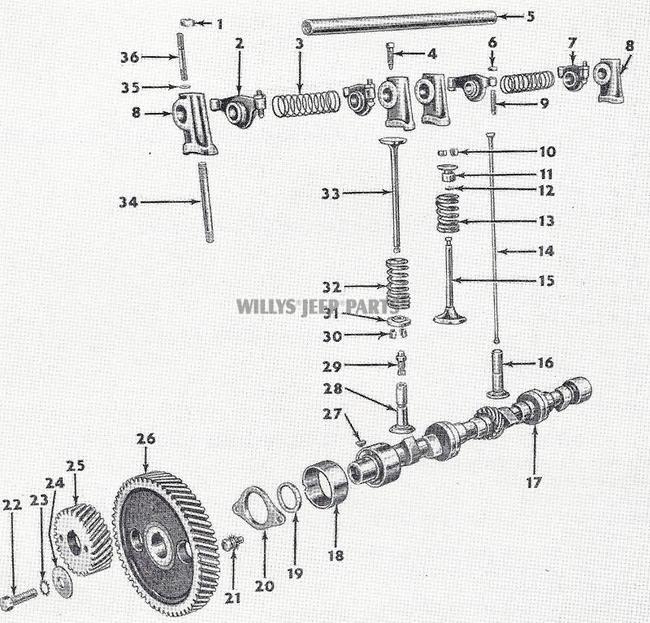

F-4-134 GEAR DRIVEN ENGINE CAMSHAFT AND TIMING GEARS

PREFIX

PART NO.

DESCRIPTION

APPLICATION

PRICE

OEM

800517

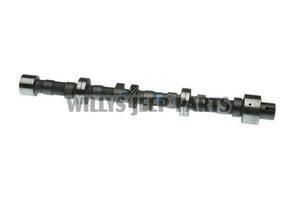

CAMSHAFT ASSEMBLY, (GEAR DRIVEN CAMSHAFT).

ALL F-4-134 ENGINES

NLA

RPL

800517-R

CAMSHAFT ASSEMBLY, (GEAR DRIVEN CAMSHAFT).

ALL F-4-134 ENGINES

NLA


800517	NLA

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

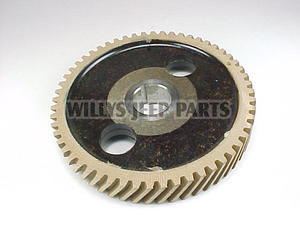

OEM	641283	GEAR, CAMSHAFT, 56 TEETH, (GEAR DRIVEN CAMSHAFT), NEW STYLE, ALL ALUMINUM.	ALL F-4-134 ENGINES	$ 128.50

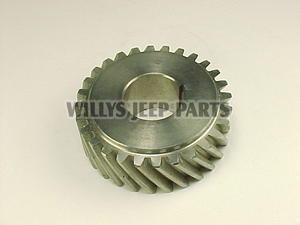

OEM	641282	GEAR, CRANKSHAFT, 28 TEETH, (GEAR DRIVEN CAMSHAFT).	ALL F-4-134 ENGINES	$ 66.50
NOS	641282 NOS	GEAR, CRANKSHAFT, 28 TEETH, (GEAR DRIVEN CAMSHAFT).	ALL F-4-134 ENGINES	$ 110.00

641283

$ 128.50

641282

$ 66.50

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
OEM	645595	CAMSHAFT BUSHING, FRONT, SEALED POWER USA BRAND.	ALL F-4-134 ENGINES	$ 22.50
T/O	644963	PLATE, THRUST, CAMSHAFT.	ALL F-4-134 ENGINES	$ 22.50
OEM	6412-K	INSTALL KIT, CAMSHAFT THRUST PLATE, GRADE 8 BOLTS AND TOOTHED LOCK WASHERS.	ALL F-4-134 ENGINES	$ 2.50
T/O	641049	SPACER, CAMSHAFT THRUST PLATE.	ALL F-4-134 ENGINES	$ 22.50
OEM	5036	KEY, CAMSHAFT GEAR TO CAMSHAFT.	ALL F-4-134 ENGINES	$ 1.50
OEM	50917	KEY, CRANKSHAFT GEAR TO CRANKSHAFT.	ALL F-4-134 ENGINES	$ 1.50
OEM	642520	WASHER, SPECIAL, THICK AND WIDE, CAMSHAFT GEAR, USED TO DRAW THE CAMSHAFT GEAR INTO POSITION ON THE CRANKSHAFT GEAR.	ALL F-4-134 ENGINES	$ 12.50
OEM	53856	CAP SCREW, GEAR TO CAMSHAFT, INCLUDES LOCKWASHER.	ALL F-4-134 ENGINES	$ 3.50
OEM	51460	PLUG, EXPANSION, CAMSHAFT REAR.	ALL F-4-134 ENGINES	$ 4.50


645595	$ 22.50


644963	$ 22.50


6412K	$ 2.50


641049	$ 22.50 EA.


5036	$ 1.50 EA.


50917	$ 1.50 EA.


642520	$ 12.50 EA.


53856	$ 3.50


51460	$ 4.50 EA.
