10-11D ENGINE CAMSHAFT AND TIMING GEARS FOR THE L-6-226 ENGINE

L-6-226 CHAIN DRIVEN CAMSHAFT AND TIMING GEARS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
R/B	637065 R/B	CAMSHAFT ASSEMBLY, (CHAIN DRIVEN CAMSHAFT). THIS IS AN ORIGINAL WILLYS CAMSHAFT MADE IN THE USA, PROFESSIONALLY REMANUFACTURED IN THE USA BY SCHNIDER RACING CAMS. CORE REQUIRED ON THIS CAMSHAFT	ALL L-6-226 ENGINES	$ 335.00
OEM	707288	SPROCKET, CAMSHAFT, 36 TEETH, 5/8" WIDE, MORSE CHAIN TYPE.	ALL L-6-226 ENGINES	$ 127.50

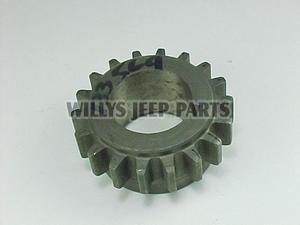

OEM	733569	SPROCKET, CRANKSHAFT, 18 TEETH, 5/8" WIDE, MORSE CHAIN TYPE.	ALL L-6-226 ENGINES	$ 52.50
OEM	707289	CHAIN, TIMING, 46 LINKS, FOR USE WITH 5/8" WIDE GEARS, MORSE CHAIN TYPE.	ALL L-6-226 ENGINES	$ 90.00

707288

$ 127.50

733569

$ 52.50


707289	$ 90.00

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
OEM	920282	SPROCKET, CAMSHAFT, 36 TEETH, 1/2" WIDE, LINK BELT TYPE.	ALL LATE L-6-226 ENGINES	$ 127.50
OEM	920281	SPROCKET, CRANKSHAFT, 18 TEETH, 1/2" WIDE, LINK BELT TYPE.	ALL LATE L-6-226 ENGINES	$ 76.50
OEM	920280	CHAIN, TIMING, 46 LINKS, FOR USE WITH 1/2" WIDE GEARS, LINK BELT TYPE.	ALL LATE L-6-226 ENGINES	$ 48.50

NOTE- WHEN ONE OF THE TIMING GEARS OR THE TIMING CHAIN REQUIRES REPLACEMENT, ALL OF THE PARTS SHOULD BE REPLACED AS A SET. TWO TYPES OF TIMING CHAIN AND GEAR SETS ARE USED ON THE L-6-226 ENGINE. THE "MORSE CHAIN" IS THE EARLY TYPE AND THE "LINK BELT" IS THE LATE TYPE. THESE SETS ARE INTERCHANGEABLE FOR L-6-226 ENGINES. THE TIMING GEARS AND CHAINS CANNOT BE MIXED BETWEEN THE TWO TYPES.

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
OEM	711873-K	CAMSHAFT BUSHING (BEARING) SET, 4 PCS.	ALL L-6-226 ENGINES	$ 110.00
OEM	#505	KEY, CAMSHAFT SPROCKET TO CAMSHAFT.	ALL L-6-226 ENGINES	$ 1.50
OEM	#806	KEY, CRANKSHAFT SPROCKET TO CRANKSHAFT.	ALL L-6-226 ENGINES	$ 1.75
