| 10-18 |
ENGINE CRANKCASE VENTILATOR AND CRANKCASE VENTILATOR VALVE (P.C.V. VALVE)
|
|
| |
10-18A ENGINE CRANKCASE VENTALATOR AND PARTS
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| T/O |
A-1061 |

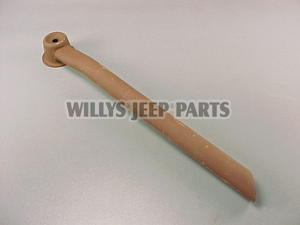

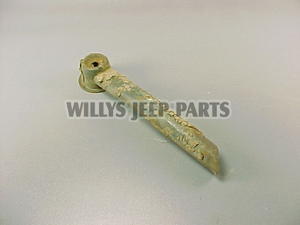

CRANKCASE VENTILATOR
(DRAFT TUBE), FOR OPEN SYSTEMS, 10" LONG.
|
ALL 4-134 ENGINES WITH OPEN SYSTEMS
|
$ 68.50 |
| T/O |
630295 |
CRANKCASE VENTILATOR
(DRAFT TUBE), FOR OPEN
SYSTEMS, 14" LONG.
|
ALL 4-134 ENGINES WITH OPEN SYSTEMS |
$ 68.50 |
| T/O |
A-6919 |

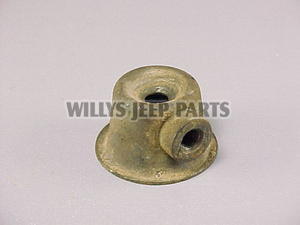

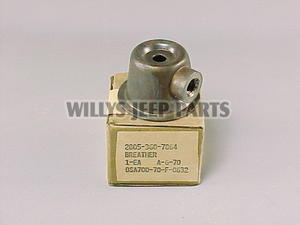

BODY, CRANKCASE VENTILATOR
FOR CLOSED SYSTEMS.
|
ALL 4-134 ENGINES WITH CLOSED SYTEMS
|
$ 24.50 |
| NOS |
A-6919 NOS |
BODY, CRANKCASE VENTILATOR
FOR CLOSED SYSTEMS.
|
ALL 4-134 ENGINES WITH CLOSED SYTEMS |
$ 32.50 |
| NOS |
630298 NOS
|
BAFFLE, CRANK CASE VENTILATOR.
|
ALL 4-134 ENGINES WITH CLOSED SYTEMS |
CALL |
| OEM |
630299 |
GASKET, CRANKCASE VENTILATOR
TO VALVE SPRING COVER.
|
ALL 4-134 ENGINES
|
$ 2.50 |
OEM
|
645093 |

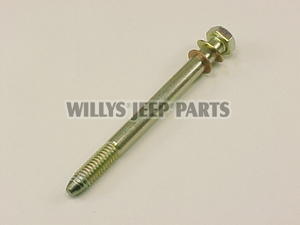

BOLT, SPECIAL, CRANKCASE VENTILATOR OR DRAFT TUBE TO ENGINE BLOCK, 3 11/16" LONG. INCLUDES THE COPPER GASKET AND WASHER.
|
ALL 4-134 ENGINES |
$ 5.50 |
| OEM |
51875 |

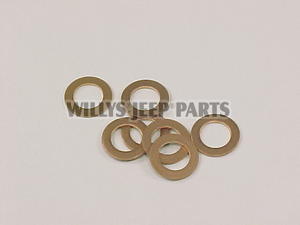

GASKET, COPPER, CRANKCASE VENTILATOR BOLT, 2 REQD.
|
ALL 4-134 ENGINES |
$1.00 EA.
|
| OEM |
674993 |
WASHER, SPRING TENSION, CRANKCASE VENTILATOR COPPER GASKET, LIGHT SERIES, 2 REQD.
|
ALL 4-134 ENGINES |
$1.00 EA.
|
| NOS |

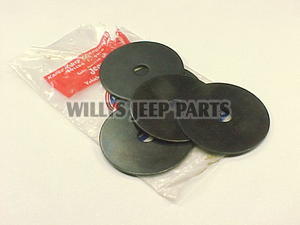

937306 NOS
|
PLATE, VALVE SPRING COVER, USED TO ELIMINATE CRANKCASE VENTILATOR OR DRAFT TUBE, 2" O.D., WITH 5/16" CENTER HOLE.
|
ALL L 4-134 ENGINES
|
$ 6.50 |
| OEM |
645094 |

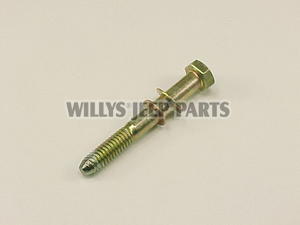

BOLT, VALVE COVER, SPECIAL, 2 9/16" LONG, TAPERED END, USED WITH PLATE LISTED ABOVE, INCLUDES THE COPPER GASKET AND WASHER.
|
ALL 4-134 ENGINES |
$ 5.50
|
| RPL |
A-6922 |

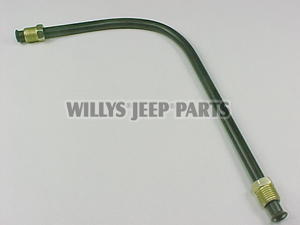

TUBE, ENGINE CRANKCASE VENTILATOR VALVE ASSY. STEEL WITH YELLOW ZINC NUTS AND O.D. GREEN POWDER COAT.
|
ALL 4-134 ENGINES |
$ 22.50
|
| OEM |
384549 |

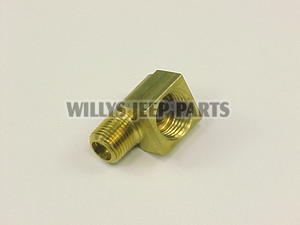

ELBOW, CRANKCASE VENTILATOR TO TUBE AT VENTILATOR BODY, BRASS.
|
ALL 4-134 ENGINES |
$ 7.50
|
| OEM |
A-6885 |

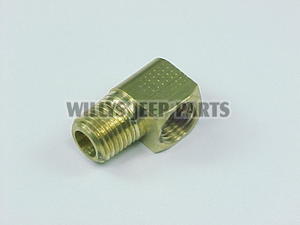

ELBOW, CRANKCASE VENTILATOR TO TUBE AT VENTILATOR BODY, BRASS.
|
ALL 4-134 ENGINES |
$ 7.50
|
| OEM |

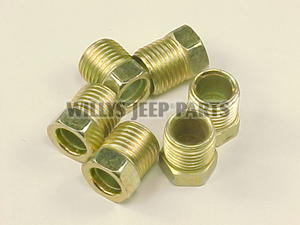

142427 |
NUT, INVERTED FLARE TUBE, HEX, FOR 5/16" TUBE, YELLOW ZINC PLATED STEEL, 2 REQD.
|
ALL 4-134 ENGINES |
$ 3.75 EA.
|
|
| |
|
|
| |
A-1061 |
$ 68.50
|
|
|
630295 |
$ 68.50
|
|
|
| |
|
|
| |
A-6919 |
$ 24.50
|
|
|
A-6919-NOS |
$ 32.50
|
|
|
| |
|
|
| |
630298-NOS |
CALL
|
|
|
630299 |
$ 2.50 EA.
|
|
|
| |
 |
| 645093 |
$ 5.50 |
|
 |
| 51875 |
$ 1.00 EA.
|
|
|
| |
 |
| 674993 |
$ 1.00 EA.
|
|
 |
| 937306-NOS |
$ 6.50 EA.
|
|
|
| |
 |
| 645094 |
$ 5.50
|
|
 |
A-6922
|
$ 22.50
|
|
|
| |
 |
| 384549 |
$ 7.50 |
|
 |
| A-6885 |
$ 7.50 |
|
|
| |
|
| 142427 |
$ 3.75 EA.
|
|
| |
| |
10-18B CRANKCASE VENTILATOR VALVES (P.C.V VALVES)
|
| |
| A LITTLE BIT ABOUT P.C.V. VALVES |
|
Crankcase vapors (blow-by) collect in the engine crankcase. Intake manifold vacuum draws the vapors through the P.C.V. valve, in varying amounts for reburning. The P.C.V. valve piston must move freely to accomplish this, as well as close off the passage completely in the event of engine backfire to prevent an explosion in the crankcase.
Failure of the P.C.V. system results in upsetting the carburetor fuel mixture since the induction system has been calibrated to accommodate this additional air supply.
| P.C.V. troubles are indicated by the following symptoms: |
| 1. |
Oil vapor escaping from dip stick tube and oil fill cap. |
| 2. |
Strong oil fume odors in passanger compartment. |
| 3. |
Rough engine idle speed and stalling tendencies. |
| 4. |
Condensation and oil contamination resulting in sludge formation, etching and rusting of critical, highly polished internal engine parts. |
|
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| NOS |

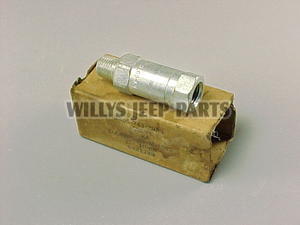

A-6895 NOS
|
VALVE, CRANKCASE VENTILATOR, WITH ONE THREADED END.
|
ALL L 4-134 AND F-4-134 ENGINES WITH CLOSED SYSTEMS
|
NLA |
| OEM |

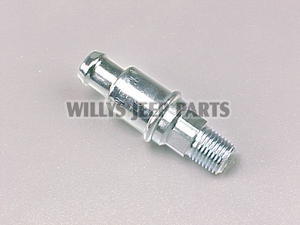

941311 |
VALVE, CRANKCASE VENTILATOR, WITH ONE THREADED END, CAN BE USED AS A REPLACEMENT FOR A-6895 AND 930929.
|
LATE CJ-3B/5/6 WITH F-4-134 ENGINE |
$ 16.50 |
| OEM |

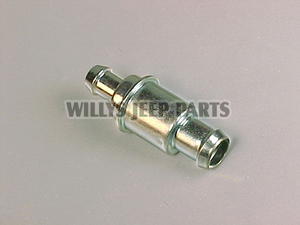

6422053
|
PCV VALVE, WITH TWO SLIP ON ENDS.
|
ALL V6-225 ENGINES |
$ 6.50 |
|
| |
 |
| A-6895-NOS |
$ 42.50 |
|
 |
| 941311 |
$ 16.50 |
|
|
| |
 |
| 6422053 |
$ 6.50 |
|
| |
| |
10-18C CRANKCASE VENTILATION BREATHER CAPS
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
OEM
|
701357 |
CAP, OIL FILLER AND BREATHER, USED ON THE ROCKER COVER ON F-4-134 AND F-6-161 ENGINES, USED ON THE OIL FILLER THE ON THE L-6-226 ENGINE.
|
F-4-134/ F-6-161 L-6-226 ENGINES
|
$ 13.50 |
|
| |
 |
| 701357 |
$ 13.50 |
|
|
|
| |
|
PLEASE REFER TO SUB-GROUP 10-16 FOR VENTILATING OIL FILLER CAPS
PLEASE REFER TO SUB-GROUP 10-10 FOR SIDE VALVE SPRING COVERS
|
| |
