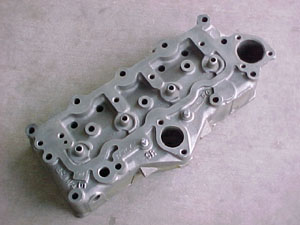

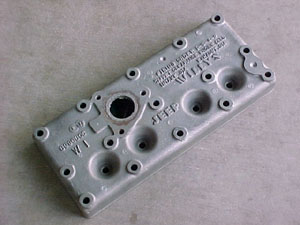

10-02A  ENGINE CYLINDER HEADS
10-02A-1  ENGINE CYLINDER HEADS AND PACKAGE DEALS


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
R/B 637014
R/B



CYLINDER HEAD, FLAT HEAD, FOUR-CYLINDER, L-4-134 ENGINE, WITH TWO BOLT WATER OUTLET ELBOW.

  MA, EARLY CARS AND
 TRUCKS		 $ 550.00
R/B 640161  R/B



 CYLINDER HEAD, FLAT HEAD, FOUR-CYLINDER, L-4-134 ENGINE.

  MB/GPW/CJ-2A/3A DJ-3A/M38
 4-63 VJ/SW/SD/PU		 $ 465.00
R/B 807763  R/B



CYLINDER HEAD, FLAT HEAD, FOUR-CYLINDER, L-4-134 INDUSTRIAL ENGINE.

 GENERATORS, FORKLIFTS, ETC.
 $ 465.00
R/B 800572  R/B



 CYLINDER HEAD, VALVE-IN-HEAD, F-4-134 ENGINE.

  CJ-3B/5/6/FC-150/M38A1
 4-75 VJ/SW/SD/PU		 $ 465.00
R/B 642509  R/B



CYLINDER HEAD, FLAT HEAD, SIX CYLINDER, L-6-161 "LIGHTNING 6" ENGINE.



 6-63 SW/SD $ 795.00
R/B 905742  R/B



CYLINDER HEAD, FLAT HEAD, SIX CYLINDER, L-6-226 ENGINE.

  SW/SD/PU/FC-170 $ 465.00




  637014 R/B

$ 550.00

     640161-R/B

$ 465.00






905742-R/B

$ 465.00


NOTE:
 ALL OF OUR CYLINDER HEADS HAVE BEEN BEAD BLASTED, MAGNA FLUXED FOR CRACKS AND PROFESSIONALLY RESURFACED AND PAINTED IN THE CORRECT NEW FORD GRAY ENGINE PAINT.



              ENGINE CYLINDER HEAD PACKAGE DEALS

640161-PD
This package deal includes a professionally rebuilt  L-4-134 cylinder head, OEM head gasket and water outlet gasket, 15 cylinder head studs and 15 cylinder head stud nuts .............$ 585.00



640161-PD

$ 585.00


800572-PD
This package deal includes a professionally rebuilt  F-4-134 cylinder head, OEM head gasket, rocker cover gasket and water outlet gasket, 15 cylinder head bolts, 4 inlet valves, 4 inlet valve guides, 4 inlet valve springs, valve spring retainers, locks and seals all assembled .........$ 1050.00



800572-PD

$ 1050.00


905742-PD
This package deal includes a professionally rebuilt  L-6-226 cylinder head, OEM head gasket, 33 cylinder head bolts and 33 cylinder head bolt washers...........................................................$ 646.00



905742-PD

$ 646.00



NOTE:
 ALL OF OUR CYLINDER HEADS HAVE BEEN BEAD BLASTED, MAGNA FLUXED FOR CRACKS AND PROFESSIONALLY RESURFACED AND PAINTED IN THE CORRECT NEW FORD GRAY ENGINE PAINT.


10-02A-2  ENGINE CYLINDER HEAD GASKETS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM A-8558



CYLINDER HEAD GASKET, FEL-PRO USA BRAND.

 MB/GPW AND OTHER EARLY L-4-134 ENGINES 1939-1945

 $ 32.50
RPL 638540-R



CYLINDER HEAD GASKET.



 ALL LATE    L-4-134 ENGINES 1946-1968
 $ 18.50
OEM 638540



CYLINDER HEAD GASKET, FEL-PRO USA BRAND.

 ALL LATE    L-4-134 ENGINES 1946-1968
 $ 38.50
NOS 638540 NOS



CYLINDER HEAD GASKET, FEL-PRO AND VICTOR USA BRANDS.

 ALL LATE    L-4-134 ENGINES 1946-1968
 $ 42.50
RPL
 807036-R



 CYLINDER HEAD GASKET.



 ALL F-4-134 ENGINES 1950-1973
 $ 19.50
OEM 807036



CYLINDER HEAD GASKET, FEL-PRO USA BRAND.

  ALL F-4-134 ENGINES 1950-1973
 $ 32.50
NOS 807036 NOS



CYLINDER HEAD GASKET, FEL-PRO USA BRAND.

  ALL F-4-134 ENGINES 1950-1973 $ 22.50
NOS 801418 NOS



CYLINDER HEAD GASKET, STAMPED: "DETROIT GASKET & MFG. CO. STEEL BESTOS".

  ALL F-6-161 ENGINES 1950-1973 $ 86.50
OEM 928731



CYLINDER HEAD GASKET, FEL-PRO USA BRAND.

  ALL L-6-226 ENGINES 1947-1966
 $ 52.50
NOS 928731 NOS



CYLINDER HEAD GASKET, VICTOR USA BRAND, No. 986K

  ALL L-6-226 ENGINES 1947-1966 $ 68.50
RPL
 945519-R



 CYLINDER HEAD GASKET.



 ALL 6-230 ENGINES
$ 26.50
OEM 1357869



CYLINDER HEAD GASKET, FEL-PRO  USA BRAND, 2 REQD.

  ALL V-6-225 ENGINES. 1965-1977
 $ 32.50 EA.




  A-8558

$ 32.50

     638540

$ 38.50







638540-NOS

$ 42.50

     807036

$32.50





801418-NOS $ 86.50.



928731 $ 52.50
928731-NOS $ 68.50


1357869 $ 32.50 EA.



10-02A-3  ENGINE VALVE JOB GASKET SETS (HEAD SETS)


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 802030



ENGINE VALVE JOB GASKET SET, FEL-PRO USA BRAND.

  ALL LATE L-4-134 ENGINES 1946-1968
 $ 62.50
NOS
  802030    NOS



ENGINE VALVE JOB GASKET SET, WILLYS USA BRAND.

  ALL LATE L-4-134 ENGINES 1946-1968
 $ 88.50
OEM 801344



ENGINE VALVE JOB GASKET SET, FEL-PRO USA BRAND.

  ALL F-4-134 ENGINES 1950-1973
 $ 68.50
NOS
  801344     NOS



ENGINE VALVE JOB GASKET SET, WILLYS USA BRAND.

  ALL F-4-134 ENGINES 1950-1973
 $ 88.50
OEM 907580



ENGINE VALVE JOB GASKET SET, FEL-PRO USA BRAND.

 ALL L-6-226 ENGINES 1950-1973 $ 116.50
NOS
  907580  NOS



ENGINE VALVE JOB GASKET SET, WILLYS USA BRAND.

  ALL L-6-226 ENGINES 1947-1966
 $ 128.50
OEM 1396320



ENGINE VALVE JOB GASKET SET, FEL-PRO USA BRAND.

 ALL V-6-225 ENGINES 1965-1977 $ 94.50


802030-FEL-PRO $ 62.50
802030-NOS $ 88.50


801344-FEL-PRO $ 68.50
801344-NOS $ 88.50


907580-FEL-PRO $ 116.50
1396320-FEL-PRO $ 94.50



10-02A-4  ENGINE CYLINDER HEAD BOLTS, STUDS, NUTS, AND WASHERS


             L-4-134 CYLINDER HEAD BOLTS, STUDS,  AND NUTS.

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 638635



 BOLT, CYLINDER HEAD, 7/16" X 2 3/4" LONG, GRADE 8, YELLOW ZINC PLATED.

 ALL L-4-134 ENGINES $ 2.75 EA.
OEM  A-1549 349368



STUD, CYLINDER HEAD, 7/16" X 3 1/2" LONG, GRADE 8, ZINC PLATED.

 ALL L-4-134 ENGINES $ 5.50 EA.
OEM A-1548



 STUD, CYLINDER HEAD, 7/16" X 4" LONG, FOR  USE WITH GROUND STRAP, GRADE 8, ZINC PLATED.

 ALL L-4-134 ENGINES $ 5.50 EA.
OEM 638539



NUT, CYLINDER HEAD STUD, 7/16", GRADE 8, YELLOW ZINC PLATED.

 ALL L-4-134 ENGINES $ 0.50 EA.



NOTE- THE PROPER INSTALLATION OF THE L-4-134 CYLINDER HEAD REQUIRES THE USE OF A MIX OF BOLTS AND STUDS. CONSULT YOUR PARTS LIST FOR THE CORRECT PARTS.


638635 $ 2.75 EA.
A-1549/349368 $ 5.50 EA.


A-1548 $ 5.50 EA.
638539 $ 0.50 EA.



              F-4-134 CYLINDER HEAD BOLTS AND NUTS


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 805730



BOLT, CYLINDER HEAD, 7/16" X 4 1/4" LONG, 14 REQD, GRADE 8, YELLOW ZINC PLATED.

  ALL F-4-134 ENGINES $ 4.50 EA.
OEM 801000



BOLT, CYLINDER HEAD, 7/16" X 1 3/4" LONG, 1 REQD. USED UNDER CARBURETOR, GRADE 8, YELLOW ZINC PLATED.

  ALL F-4-134 ENGINES $ 1.95 EA.
OEM 638539



NUT, CLYINDER HEAD STUD, 7/16", GRADE 8, YELLOW ZINC PLATED.

  ALL F-4-134 ENGINES WITH CYLINDER HEAD STUDS
 $ 0.50 EA.


805730 $ 4.50 EA.
801000 $ 1.95 EA.


638539 $ 0.50 EA.



             L/F-6-161 CYLINDER HEAD BOLTS, STUDS, AND NUTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 801755



BOLT, CYLINDER HEAD, 7/16" X 4 1/2"   LONG, 24 REQD, GRADE 8, YELLOW ZINC PLATED.

 ALL  F-6-161 ENGINES $ 5.50 EA.
OEM 642567



STUD, CYLINDER HEAD, 7/16" X 3 1/2"  LONG, 21 REQD, GRADE 8, YELLOW ZINC PLATED.

 ALL L- 6-161 ENGINES $ 5.50 EA.
OEM 638539



NUT, CYLINDER HEAD STUD, 7/16", 21 REQD, GRADE 8, YELLOW ZINC PLATED.

 ALL L- 6-161 ENGINES $ 0.50 EA.


6-161 CYLINDER HEAD BOLT, STUD AND NUT


             L-6-226 CYLINDER HEAD BOLTS AND WASHERS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 733955



BOLT, CYLINDER HEAD, 3/8" X 2 7/8"
  LONG, 33 REQD, GRADE 8, YELLOW ZINC PLATED.

 ALL L- 6-226 ENGINES $ 3.00 EA.
OEM 706167



WASHER, SPECIAL CYLINDER HEAD BOLT, 3/8", 33 REQD, GRADE 8, YELLOW ZINC PLATED.

 ALL L-6-226 ENGINES $ 1.25 EA.


L-6-226 CYLINDER HEAD BOLT AND SPECIAL WASHER


              OHC 6-230 CYLINDER HEAD BOLTS AND WASHERS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 926089



BOLT, CYLINDER HEAD, 5 1/2"
LONG,  11 REQD, GRADE 8, YELLOW ZINC PLATED.

  OHC-6-230 ENGINES $ 5.50 EA.
OEM 926090



 BOLT, CYLINDER HEAD, 2 1/4"
  LONG, 3 REQD, GRADE 8, YELLOW ZINC PLATED.

  OHC-6-230 ENGINES $ 2.75 EA.
OEM 930856



WASHER SPECIAL, CYLINDER HEAD, 14 REQD, GRADE 8, YELLOW ZINC PLATED.

  OHC-6-230 ENGINES $ 1.25 EA.


              V6-225 CYLINDER HEAD BOLTS


PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 9419652



BOLT, CYLINDER HEAD, 7/16 x 2 3/4" LONG 12 REQD, GRADE 8, YELLOW ZINC PLATED.

  V6-225 ENGINES $ 3.50 EA.
OEM 9419653



BOLT, CYLINDER HEAD, 7/16 x 3 1/2" LONG 4 REQD, GRADE 8, YELLOW ZINC PLATED.

  V6-225 ENGINES $ 4.50 EA.


              BY-PASS HOSE FITTINGS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
OEM 649720



NIPPLE, BY-PASS HOSE, BRASS, MOUNTS ON CYLINDER HEAD AND WATER PUMP.

 ALL 4-134 ENGINES
 $ 7.50 EA.


649720 $ 7.50
