27-04A LEAF SPRING SHACKLES, BOLTS AND BUSHINGS
|
| A. LEAF SPRING SHACKLES |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
|
RPL
|
802062-R
|
SPRING SHACKLE KIT, "U" BOLT TYPE WITH TWO RIGHT HAND THREADED BUSHINGS, FRONT AND REAR SPRINGS.
|
MB/GPW CJ-2A/3A/3B DJ-3A/M38 FC-150/SW/PU
|
$ 17.50
|
|
RPL
|
802061-R
|
SPRING SHACKLE KIT, "U" BOLT TYPE WITH ONE RIGHT HAND AND ONE LEFT HAND THREADED BUSHINGS, FRONT AND REAR SPRINGS.
|
MB/GPW CJ-2A/3A/3B DJ-3A/M38 FC-150/SW/PU
|
$ 17.50
|
|
R/B
|
A-513
|
U-BOLT, SPRING SHACKLE, WITH ONE RIGHT HAND AND ONE LEFT HAND THREAD, FRONT AND REAR SPRINGS, ORIGINAL MADE IN THE USA.
|
MB/GPW CJ-2A/3A/3B DJ-3A/M38 FC-150/SW/PU
|
$ 38.50 EA.
|
|
R/B
|
A-514
|
U-BOLT, SPRING SHACKLE, WITH TWO RIGHT HAND THREADS, FRONT AND REAR SPRINGS, ORIGINAL MADE IN THE USA.
|
MB/GPW CJ-2A/3A/3B DJ-3A/M38 FC-150/SW/PU
|
$ 38.50 EA.
|
|
RPL
|
916646-R
|
SPRING SHACKLE KIT, DOUBLE PLATE SILENT BLOCK TYPE, FRONT AND REAR SPRINGS, USES 7/16" X 3" SPRING PIVOT BOLTS.
|
MB/GPW CJ-2A/3A CJ-3B/5/6 FC-150/SW/PU DJ-3A |
$ 24.50
|
|
RPL
|
916646HD
|
HEAVY DUTY SPRING SHACKLE KIT, DOUBLE PLATE, GREASABLE BUSHINGS, FRONT AND REAR SPRINGS.
|
ALL VEHICLES
|
$ 28.50
|
|
NOS
|
928763 NOS
|
SPRING SHACKLE KIT, REAR SPRINGS.
|
SW
|
$ 68.50
|
|
RPL
|
928763-R
|
SPRING SHACKLE KIT, REAR SPRINGS.
|
SW
|
$ 40.50
|
|
NOS
|
646085 NOS
|
SPRING SHACKLE KIT, REAR SPRINGS.
|
VJ/SW
|
NLA
|
| RPL |
646729-R |
SPRING SHACKLE ASSEMBLY, REAR SPRINGS.
|
UTILITY PU |
$ 52.50 |
|
| |
 |
| 802062-R |
NLA |
|
 |
| 802061-R |
NLA
|
|
|
| |
 |
| 916646-R |
$ 24.50 |
|
 |
|
916646HD
|
$ 28.50 |
|
|
| |
 |
|
928763-NOS
|
$ 68.50 |
|
 |
|
928763-R
|
$ 40.50 |
|
|
| |
 |
|
646085-NOS
|
NLA |
|
 |
| 646729-R |
$ 52.50 |
|
|
| |
| |
| B. LEAF SPRING PIVOT AND SHACKLE BOLTS |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
|
RPL
|

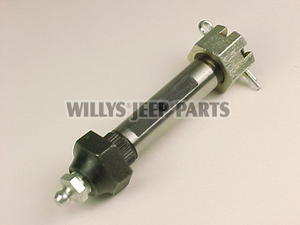

384228-R
|
SPRING PIVOT BOLT 9-16"-18 X 3 1/8", INCLUDES NUT, COTTER PIN AND GREASE FITTING, FRONT AND REAR SPRING, 4 REQD.
|
MB/GPW CJ-2A/3A/3B DJ-3A/FC-150 M38/SW/SD/PU
|
$ 8.50 EA.
|
|
OEM
|
809236
|
SPRING PIVOT BOLT, INCLUDES LOCK NUT, FRONT AND REAR SPRING, 4 REQD, 7/16" X 3".
|
CJ-5/6/M38/M38A1
|
$ 3.50 EA.
|
|
OEM
|
641295
|
SPRING PIVOT PIN, INCLUDES LOCK NUT, REAR SPRING, 2 REQD.
|
VJ/SW
|
$ 16.50
|
|
OEM
|
643763
|
SPRING PIVOT BOLT, INCLUDES LOCK NUT AND GREASE FITTING, FRONT SPRING, 2 REQD.
|
SW/SD/PU
|
$ 26.50
|
|
RPL
|
642122-R
|
REAR SPRING PIVOT BOLT, INCLUDES THE NUT, COTTER PIN AND GREASE FITTING, 6 REQD.
|
UTILITY PU
|
$ 48.50
|
|
RPL
|
A-6074-R
|
BOLT, TORQUE RETRACTION SPRING SHACKLE, 3 3/4" LONG, INCLUDES NUT, COTTER PIN AND GREASE FITTING.
|
MB/GPW |
$ 11.50
|
|
RPL
|
A-6075-R
|
BOLT, TORQUE RETRACTION SPRING PIVOT, 4 1/8" LONG, INCLUDES NUT, COTTER PIN AND GREASE FITTING.
|
MB/GPW |
$ 11.50
|
|
| |
 |
| 384228-R |
$ 8.50 |
|
 |
| 809236 |
$ 3.50 |
|
|
| |
 |
| 641295 |
$ 16.50 |
|
 |
| 643763 |
$ 26.50 |
|
|
| |
|
|
| 642122-R |
$ 48.50
|
|
|
|
| A-6074-R |
$ 11.50
|
|
|
| |
|
|
|
|
| |
| |
C. SPRING EYE AND SPRING SHACKLE BUSHINGS
|
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
|
NOS
|
635532 NOS
|
BUSHING, SPRING SHACKLE, L/H THREAD, FOR 802061 SHACKLE KIT.
|
MB/GPW CJ-2A/3A/3B DJ-3A/SW/PU |
$ 26.50
|
|
NOS
|
A-515 NOS
|
SEAL, GREASE, SPRING SHACKLE, FOR 802061 AND 802062 SHACKLE KITS.
|
MB/GPW CJ-2A/3A/3B DJ-3A/SW/PU |
$ 2.50 EA.
|
|
NOS
|
A-1252 NOS
|
RETAINER, GREASE SEAL, SPRING SHACKLE, FOR 802061 AND 802062 SHACKLE KITS.
|
MB/GPW CJ-2A/3A/3B DJ-3A/SW/PU |
NLA
|
|
RPL
|
A-6067-R
|
BUSHING, TORQUE REACTION SPRING, 9/16" I.D. X 3/4" O.D. X 2 1/8" LONG, FRONT LEFT SPRING, 1 REQD.
|
MB/GPW
|
NLA
|
|
RPL
|
359039-R
|
BUSHING, SPRING EYE, 9/16" I.D. X 3/4" O.D. X 1 9/16" LONG, BRASS, FRONT AND REAR SPRINGS, 4 REQD.
|
MB/GPW CJ-2A/3A/3B DJ-3A/SW/PU
|
$ 8.50 EA.
|
|
NOS
|
359039 NOS
|
BUSHING, SPRING EYE, 9/16" I.D. X 3/4" O.D. X 1 9/16" LONG, STEEL OUTER SHELL WITH BRONZE INTERIOR, "Fm" BRAND, FRONT AND REAR SPRING, 4 REQD.
|
MB/GPW CJ-2A/3A/3B DJ-3A/SW/PU
|
$ 16.50 EA.
|
|
RPL
|
801624 7697597
|
BEARING, SILENT BLOCK, SPRING EYE, 7/16" I.D. X 7/8" O.D. X 1 3/4" LONG, STEEL AND RUBBER, FRONT AND REAR SPRING, 6 REQD.
|
M38/M38A1 |
$ 10.50 EA.
|
|
RPL
|
921055-R
|
BEARING, SILENT BLOCK, SPRING EYE, 7/16" I.D. X 7/8" O.D. X 1 3/4" LONG, STEEL AND RUBBER, FRONT AND REAR SPRING, 6 REQD.
|
CJ-5/6 DJ-3A/FC-150 SW/PU
|
$ 6.50 EA.
|
|
NOS
|
921055 NOS
|
BEARING, SILENT BLOCK, SPRING EYE, 7/16" I.D. X 7/8" O.D. X 1 3/4" LONG, STEEL AND RUBBER, FRONT AND REAR SPRING, 6 REQD., "CANBLOC USA" BRAND
|
CJ-5/6 DJ-3A/FC-150 SW/PU |
$ 16.50 EA.
|
|
RPL
|
645916-R
|
BUSHING, SPRING EYE, 3/4" I.D. X 1" O.D. X 1 15/16" LONG, BRASS, REAR SPRINGS, 4 REQD.
|
UTILITY PU
|
$ 16.50 EA.
|
|
NOS
|
645916 NOS
|
BUSHING, SPRING EYE, 3/4" I.D. X 1" O.D. X 1 15/16" LONG, BRASS, REAR SPRINGS, 4 REQD.
|
UTILITY PU |
$ 22.50 EA.
|
|
NOS
|
643603 NOS
|
BUSHING, SPRING SHACKLE, 3/4" I.D. X 15/16" O.D. X 1 15/16" LONG, REAR SPRING, 2 REQD.
|
UTILITY PU |
NLA
|
|
OEM
|
648594
|
BUSHING, SPRING SHACKLE, RUBBER, REAR SPRINGS, 8 REQD., HARRIS BRAND.
|
VJ/SW/SD
|
$ 3.95 EA.
|
|
OEM
|
804466
|
BUSHING,SPRING EYE, RUBBER, REAR SPRINGS, 4 REQD., HARRIS BRAND
|
VJ/SW/SD
|
$ 8.50 EA.
|
|
NOS
|
930522 NOS
|
BUSHING, FRONT SPRING, SHACKLE END, 2 1/2" LONG, 1 3/4" O.D.
|
J-SERIES WAGONS
|
$ 38.50
|
|
NOS
|
930524 NOS
|
BUSHING, FRONT SPRING, SHACKLE END, 2" LONG, 1 3/4" O.D.
|
J-SERIES TRUCKS
|
$ 42.50
|
|
NOS
|
934868 NOS
|
BUSHING, FRONT SPRING, SHACKLE END, 2" LONG, 1 1/2" O.D.
|
J-SERIES TRUCKS
|
$ 42.50
|
|
NOS
|
942312 NOS
|
BUSHING, FRONT SPRING, REAR EYE, 2 1/4" LONG, 2" O.D.
|
C-101 JEEPSTER COMMANDO
|
$ 42.50
|
|
NOS
|
943177 NOS
|
BUSHING, FRONT SPRING, REAR EYE, 2 1/4" LONG, 1 1/2" O.D.
|
C-101 JEEPSTER COMMANDO
|
$ 42.50
|
|
OEM
|
921055-P
|
POLYURETHANE SPRING BUSHING KIT, FOR TWO SPRINGS AND SHACKLES, 7/16" I.D. X 7/8" O.D. X 1 7/8" LONG, 2 REQD.
|
CJ-5/6 DJ-3A/FC-150 M38/M38A1 SW/PU
|
$ 46.50
|
|
| |
 |
| 635532-NOS |
$ 26.50 |
|
 |
| A-515-NOS |
$ 2.50 EA. |
|
|
| |
 |
| A-1252-NOS |
NLA
|
|
 |
| A-6067-R |
NLA |
|
|
| |
 |
| 359039-R |
$ 8.50 |
|
 |
359039-NOS
|
$ 16.50 |
|
|
| |
 |
| 801624/7697597 |
$ 10.50 |
|
 |
| 921055-R |
$ 6.50
|
|
|
| |
|
|
| 921055-NOS |
$ 16.50
|
|
|
|
| 645916-R |
$ 16.50
|
|
|
| |
|
|
| |
643603-NOS |
NLA
|
|
|
648954 |
$ 3.95
|
|
|
| |
|
|
| |
804466 |
$ 8.50
|
|
|
930522-NOS |
$ 38.50
|
|
|
| |
 |
| 930524-NOS |
$ 42.50 |
|
 |
| 934868-NOS |
$ 42.50 |
|
|
| |
 |
| 942312-NOS |
$ 42.50 |
|
 |
| 943177-NOS |
$ 42.50 |
|
|
| |
 |
| 921055-P |
$46.50 |
|
