31-14 MIRRORS
|
| |
|
In the 1940's, 50's and even into the 60's most new vehicles were delivered to the dealerships with only an inside rear view mirror installed. The requirements and laws pertaining to the outside rear view mirrors differed from state to state across the country.
Outside rear view mirrors were considered "Special Equipment" and it was up to the vehicle owner to determine his needs. Outside rear view mirrors were available in the dealership parts depatments and installed by the service departments.
All of the Willys 1/4-ton Jeeps were factory equipped with a single driver's side cowl mounted outside rear view mirror. All of the Willys Jeepsters, Utility Wagons, Sedan Deliveries, Utility Trucks and Forward Control Trucks had a single factory equipped inside rear view mirror above the windshield.
Outside rear view mirror used on the Willys Vehicles were of four basic types:
|
| 1. |
Single tubular arm and round mirror head "UTILITY" type that bolts on the side of the cowl or door skin. |
| 2. |
Short chrome mirror arm and round head sporty "DORTOP" style that clamps to the top or upper forward edge of the door. |
| 3. |
Short chrome mirror arm and round sporty "CLASSIC" style that screws to the door skin below the window. |
| 4. |
Tripod adjustable stainless steel "SWING AWAY" type that screws or bolts to the door skin below the window. |
| |
|
| |
Inside rear view mirrors were offered as Special Equipment for the later models CJ-3B, CJ-5 and CJ-6. |
|
| |
31-14A OUTSIDE REAR VIEW MIRROR ASSEMBLIES
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
A-2934-R |
MIRROR, REAR VIEW, ASSY., OUTSIDE, INCLUDES MOUNTING BRACKET AND 5" DIA. MIRROR HEAD, 10" TO 14" ADJUSTABLE ARM, PAINTED OLIVE DRAB.
|
ALL VEHICLES |
$ 38.50 |
| RPL |
A-2934-C |
MIRROR, REAR VIEW, ASSY., OUTSIDE, INCLUDES MOUNTING BRACKET AND 5" DIA. MIRROR HEAD, 12" TO 18" ADJUSTABLE ARM, HEAVY CHROME PLATED.
|
ALL VEHICLES |
$ 64.50 |
| RPL |

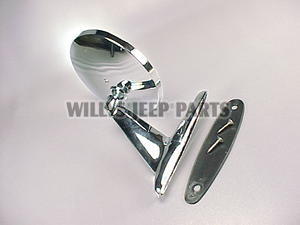

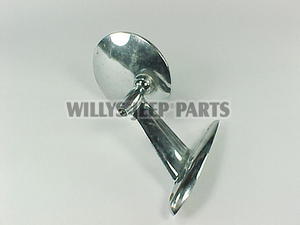

94023-R |
MIRROR, OUTSIDE ASSY., 4 3/8" DIA. MIRROR HEAD, CHROME, MOUNTS ON DOOR BELOW WINDOW.
|
VJ/SW/SD/PU |
$ 62.50 |
NOS
|
977377 NOS
|
MIRROR, OUTSIDE ASSY., 5 1/2" X 3 1/2" MIRROR HEAD, CHROME, MOUNTS ON DOOR BELOW WINDOW, INSTALLATION INSTRUCTIONS INCLUDED.
|
VJ/SW/SD/PU J-SERIES JEEPSTER COMMANDO FC-150/170
|
$ 175.00
|
RPL
|
977377-R
|
MIRROR, OUTSIDE ASSY., 5" X 4" MIRROR HEAD, CHROME, MOUNTS ON DOOR BELOW WINDOW.
|
VJ/SW/SD/PU J-SERIES JEEPSTER COMMANDO FC-150/170
|
$ 72.50
|
RPL
|
18103-R
|
MIRROR, OUTSIDE ASSY., 5 1/2" X 4" MIRROR HEAD, CHROME, MOUNTS ON DOOR BELOW WINDOW.
|
VJ/SW/SD/PU J-SERIES JEEPSTER COMMANDO FC-150/170
|
$ 24.50
|
| RPL |
94129/30-R |
MIRROR, REAR VIEW, "DORTOP" STYLE, 4" DIA. MIRROR HEAD 5 1/2" ARM, CHROME MOUNTS ON TOP OF DOOR OR IN FRONT OF VENT WING WINDOW.
|
SW/SD/PU |
$ 44.50 |
| RPL |
94030-R |
MIRROR, OUTSIDE ASSY., 5" MIRROR HEAD, 10" TO 13" ADJUSTABLE ARM, PAINTED BLACK AND STAINLESS STEEL.
|
ALL VEHICLES |
$ 48.50 |
| RPL |
94555-R |
MIRROR, OUTSIDE ASSY., 5" MIRROR HEAD, 14" TO 22" ADJUSTABLE ARM, PAINTED BLACK AND STAINLESS STEEL.
|
ALL VEHICLES |
$ 48.50 |
| RPL |
699501-R |
MIRROR, OUTSIDE ASSY., 6" MIRROR HEAD, 8" FIXED ARM, PAINTED BLACK AND SILVER.
|
FC-150/170 |
$ 48.50 |
| OEM |
955772 |
KIT, OUTSIDE MIRROR ASSY., LEFT OR RIGHT, TRIPOD ADJUSTABLE TYPE WITH 6" X 8" MIRROR, STAINLESS STEEL SIGNAL-STAT BRAND.
|
LATE SW/SD/PU FC-150/170
|
$ 72.50 |
| RPL |
5455301K |
OUTSIDE MIRROR ASSEMBLY, LEFT, PAINTED BLACK, MOUNTS ON OUTER WINDSHIELD HINGE.
|
LATE CJ-5/6
|
$ 28.50 |
| RPL |
5455302K |
OUTSIDE MIRROR ASSEMBLY, RIGHT, PAINTED BLACK, MOUNTS ON OUTER WINDSHIELD HINGE.
|
LATE CJ-5/6
|
$ 28.50 |
| RPL |
330003 |
OUTSIDE MIRROR ASSEMBLY, LEFT AND RIGHT, STAINLESS STEEL, MOUNTS ON OUTER WINDSHIELD HINGE.
|
LATE CJ-5/6
|
$ 76.50 |
|
|
|
 |
| A-2934-R |
$ 38.50 |
|
 |
| 94023-R |
$ 62.50
|
|
|
| |
 |
| 977377-NOS |
$ 175.00 |
|
 |
| 977377-R |
$ 72.50
|
|
|
|
| |
 |
| 8013-R |
$ 24.50 |
|
 |
| 94129/30-R |
$ 44.50 |
|
|
| |
 |
| 94555-R |
$ 48.50 |
|
 |
| 699501-R |
$ 48.50 |
|
|
| |
 |
| 955772 |
$ 72.50 |
|
 |
| 5455302-K |
$ 28.50 |
|
|
| |
| |
31-14B OUTSIDE MIRRORS AND MIRROR MOUNTING PARTS
|
| |
OUTSIDE MIRROR HEADS
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
A-11850-R |
MIRROR HEAD, REAR VIEW, ROUND, 5" DIA., OLIVE DRAB.
|
MB/GPW M38/M38A1 M422/M151 |
$ 14.50 |
| OEM |
663642 |
MIRROR HEAD, REAR VIEW, ROUND, 5" DIA., BLACK.
|
ALL VEHICLES |
$ 16.50 |
| OEM |
959298 |
MIRROR HEAD, REAR VIEW, ROUND 6" DIA., BLACK.
|
CJ-3A/3B/5/6 FC-150/170 |
$ 19.50 |
| OEM |
10950816 |
MIRROR HEAD, REAR VIEW, RECTANGULAR, 5 1/2" X 8 1/2", OLIVE DRAB.
|
M151/M715 |
$ 19.50
|
| OEM |
984032 |
MIRROR HEAD, REAR VIEW, RECTANGULAR, 5 1/2 X 7 1/2",
BLACK.
|
ALL VEHICLES
|
$ 19.50 |
| OEM |
120071
|
MIRROR HEAD, REAR VIEW, RECTANGULAR, 5 1/2 X 7 1/2",
WHITE.
|
ALL VEHICLES
|
$ 21.25 |
| OEM |
120073
|
MIRROR HEAD, REAR VIEW, RECTANGULAR, 5 1/2 X 7 1/2",
STAINLESS STEEL.
|
ALL VEHICLES
|
$ 23.25 |
| OEM |
959298
|
MIRROR HEAD, RECTANGULAR, FOR USE WITH TRIPOD MIRROR KIT 955772, 6" X 8", STAINLESS STEEL, SIGNAL STAT BRAND.
|
LATE SW/SD/PU FC-150/170
|
$ 31.50
|
|
| |
|
|
| |
A-11850-R |
$ 14.50
|
|
|
663642 |
$ 16.50
|
|
|
| |
|
|
| |
959298 |
$ 19.50
|
|
|
10950816 |
$ 19.50
|
|
|
| |
 |
984032
|
$ 19.50 |
|
 |
| 120071 |
$ 21.25 |
|
|
|
|
| |
 |
120073
|
$ 23.35
|
|
 |
| 959298 |
$ 31.50 |
|
|
|
|
| |
| OUTSIDE MIRROR ARMS |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
547250-R |
MIRROR ARM, ADJUSTABLE,
10" TO 14", OLIVE DRAB.
|
MB/GPW/M38/M38A1 M422/M151/M715 |
$ 18.50 |
| OEM |
110002 |
MIRROR ARM, ADJUSTABLE,
10" TO 13", BLACK AND CHROME.
|
ALL VEHICLES |
$ 22.50 |
| OEM |
110012 |
MIRROR ARM, ADJUSTABLE,
14" TO 22", BLACK AND CHROME.
|
ALL VEHICLES |
$ 31.50 |
| OEM |
110013 |
MIRROR ARM, ADJUSTABLE,
14" TO 22", CHROME.
|
ALL VEHICLES |
$ 32.50 |
| OEM |
978518 |
MIRROR ARM, FIXED, 8", SILVER PAINT.
|
FC-150/170 |
$ 11.50 |
|
| |
|
|
| |
547250-R |
$ 18.50
|
|
|
110002 |
$ 22.50
|
|
|
| |
 |
| 110012 |
$ 31.50 |
|
 |
| 110013 |
$ 32.50 |
|
|
| |
|
|
| 978518 |
$ 11.50
|
|
| |
| |
OUTSIDE MIRROR MOUNTING PARTS
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
A-11851-R |
BRACKET, MIRROR MOUNTING, OD GREEN STEEL, 3 HOLE, 2 REQD.
|
ALL VEHICLES
|
$ 8.50 EA. |
| OEM |

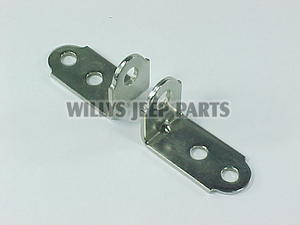

957607 |
BRACKET, MIRROR, MOUNTING, CHROME PLATED STEEL, 2 REQD.
|
ALL VEHICLES |
$ 6.50 EA. |
| OEM |
118149 |
CLAMP, MIRROR ARM PIVOT
|
ALL VEHICLES |
$ 4.50 |
| OEM |
118146 |
FIBER WASHER, MIRROR ARM
PIVOT AND BRACKET, 3/8" I.D., 4 REQD.
|
ALL VEHICLES |
$ 0.75 EA. |
| OEM |
118146-K |
MIRROR ARM ASSEMBLY KIT, FOR ONE MIRROR.
|
ALL VEHICLES |
$ 4.50 |
|
| |
|
|
| |
A-11851-R |
$ 8.50 EA.
|
|
|
957607 |
$ 6.50 EA.
|
|
|
| |
 |
| 118149 |
$ 4.50 |
|
 |
| 118146 |
$ 0.75 EA. |
|
|
| |
|
|
| 118146-K |
$ 4.50
|
|
| |
| |
| 31-14C INSIDE REAR VIEW MIRRORS |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| RPL |
671167-R |
INSIDE REAR VIEW MIRROR, 8 1/2" WIDE, BLACK ABS PLASTIC, MOUNTS ON ANY FLAT SURFACE.
|
ALL VEHICLES WITH FLAT WINDSHIELD FRAMES
|
$ 12.50 |
| T/O |
671167 |
INSIDE REAR VIEW MIRROR, 8 1/2" WIDE, MOUNTS ON ANY FLAT SURFACE.
|
CJ-3A/3B/5/6 DJ-3A
|
CALL
|
| NOS |
671167 NOS
|
INSIDE REAR VISION MIRROR, 8 1/2" WIDE, MOUNTS ON ANY FLAT SURFACE, ORIGINAL INSTALLATION INSTRUCTIONS DATED: MAY 1960.
|
CJ-3A/3B/5/6 DJ-3A |
$ 175.00 |
| T/O |
674944
|
MIRROR, REAR VIEW, INSIDE, FOR USE WITH A 2 PIECE WINDSHIELD, 6 1/2" WIDE, WITH THREADED STUD THAT SCREWS INTO WINDSHIELD DIVISION BAR.
|
EARLY SW/SD/PU
|
$ 45.00
|
| T/O |
955036 |
MIRROR, REAR VIEW, INSIDE, FOR USE WITH A 1 PIECE WINDSHIELD, 6" WIDE.
|
LATE SW/SD/PU |
CALL
|
| NOS |
10950816 NOS
|
MIRROR ASSEMBLY, INSIDE, MOUNTS ON WINDSHIELD FRAME, OFFSET SWIVEL STUD, 5" DIAMETER.
|
M151 |
$ 26.50 |
| RPL |
18302 |
INSIDE REAR VIEW MIRROR, ASSEMBLY, BLACK, WITH NONE-GLARE ADJUSTMENT SWITCH AND MOUNTING KIT.
|
ALL VEHICLES WITH ONE PIECE WINDSHIELD GLASS
|
$ 28.50 |
| RPL |
641025-R |
INSIDE REAR VIEW MIRROR, ASSEMBLY, STAINLESS STEEL, FOR USE WITH THE TUBULAR WINDSHIELD FRAMES ON THE MB/GPW/CJ-2A AND THE CURVED INNER WINDSHIELD GARNISH ON THE UTILITY SW/SD/PU.
|
MB/GPW CJ-2A SW/SD/PU
|
$ 62.50 |
|
| |
 |
| 671167-R |
$ 12.50 |
|
 |
| 671167 |
CALL |
|
|
|
|
|
 |
| 671167-NOS |
$ 175.00 |
|
 |
| 674944 |
$ 45.00 |
|
|
| |
 |
| 955036 |
CALL |
|
 |
| 10950816-NOS |
$ 26.50 |
|
|
| |
 |
| 18032 |
$ 28.50
|
|
 |
| 641025-R |
$ 62.50 |
|
|
|
| |
| |
31-14D INSIDE MIRRORS AND MIRROR MOUNTING PARTS
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| T/O |
663876 |
BAR, CENTER, WINDSHIELD GLASS, WITH 5/16" WELDED NUT FOR INSIDE MIRROR MOUNTING, FOR USE WITH TWO PIECE WINDSHIELD.
|
SW/SD/PU
|
$ 45.00
|
| T/O |
664758 |
BRACKET, INSIDE REAR VIEW MIRROR MOUNTING WITH 1/4" THREADED HOLE FOR MIRROR STUD, FOR USE WITH TWO PIECE WINDSHIELD.
|
EARLY SW/SD
|
$ 68.50
|
| T/O |
955036-B |
BRACKET, INSIDE REAR VIEW MIRROR. FOR USE WITH ONE PIECE WINDSHIELD
|
LATE SW/SD/PU CJ-3A/3B/5/6 DJ-3A
|
$ 45.00
|
| T/O |
666345 |
MIRROR, REAR VIEW, INSIDE, WITH #10-32 SCREW, FOR USE WITH BRACKET 955036-B.
|
LATE SW/SD/PU CJ-3A/3B/5/6 DJ-3A
|
$ 45.00
|
| RPL |
666345-R |
MIRROR, REAR VIEW, INSIDE, WITH #10-32 SCREW, FOR USE WITH BRACKET 955036-B, STAINLESS STEEL, EXACT COPY OF ORIGINAL.
|
LATE SW/SD/PU CJ-3A/3B/5/6 DJ-3A
|
$ 68.50
|
|
| |
 |
| 663876 |
$ 45.00 |
|
 |
| 664758 |
$ 68.50 |
|
|
| |
 |
955036-B
|
$ 45.00 |
|
 |
| 666345 |
$ 45.00 |
|
|
| |
|
|
| 666345-R |
$ 68.50
|
|
| |
| |
