10-16A-1-A-1
A-1230  FRAM AND PUROLATOR OIL FILTER
             FOR THE MB/GPW/CJ-2A AND M38

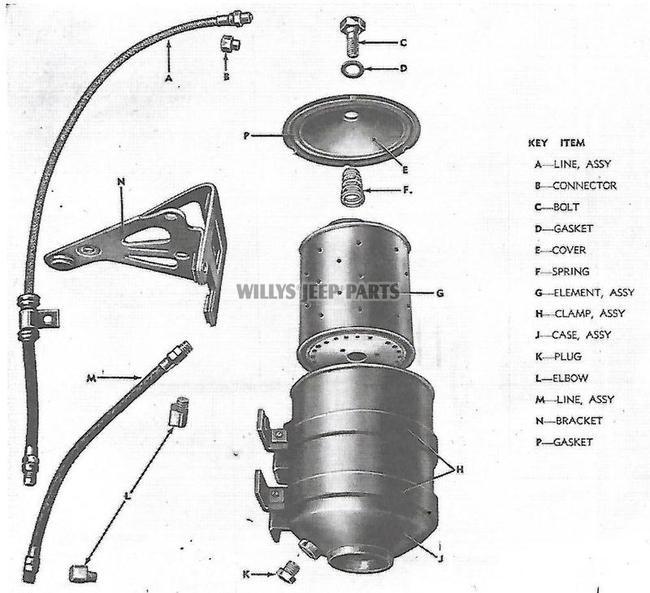

A-1230 OIL FILTER ASSEMBLY AND PARTS


           A-1230 OIL FILTER ASSEMBLY AND PARTS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE

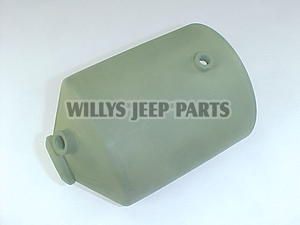

T/O A-6818



 CASE ASSEMBLY, OIL FILTER, 5" DIAMETER, FRAM AND PUROLATOR BRANDS.

MB/GPW CJ-2A M38/M38A1
$ 175.00

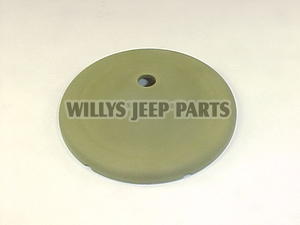

T/O A-1231



 COVER ASSEMBLY, OIL FILTER, 5" DIAMETER, FRAM AND PUROLATOR BRANDS.

MB/GPW CJ-2A M38/M38A1
$ 48.50
RPL A-1232-K



BOLT, SPECIAL, COVER HOLD DOWN, INCLUDES WASHER AND COPPER GASKET.

MB/GPW CJ-2A M38/M38A1
$ 4.50
RPL A-1233



GASKET, COVER BOLT, COPPER, 7/16" I.D. X 1" O.D., USA MADE.

MB/GPW CJ-2A M38/M38A1
$ 2.25
OEM A-1236 119952



ELEMENT ASSEMBLY, OIL FILTER, INCLUDES RUBBER COVER GASKET , WIX USA BRAND.

MB/GPW CJ-2A M38/M38A1
$ 18.50

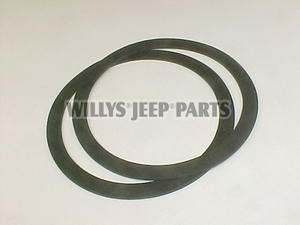

RPL A-1235



GASKET, COVER , RUBBER, 5 1/8" O.D. X  4 1/4"  I.D., USA MADE.

MB/GPW CJ-2A M38/M38A1
$ 2.50

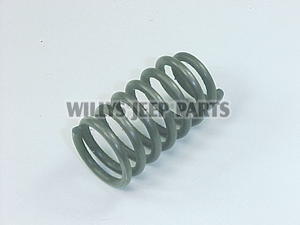

T/O A-1234



 SPRING, COVER BOLT, FOR USE ON COVERS WITHOUT FIXED SPRINGS.

MB/GPW CJ-2A M38/M38A1
$ 16.50
T/O A-1251



CLAMP WITH SCREW, LOCK WASHER AND SQUARE NUT, 2 REQD., ORIGINAL USA FRAM AND PUROLATOR BRANDS.

MB/GPW CJ-2A M38/M38A1
$ 32.50

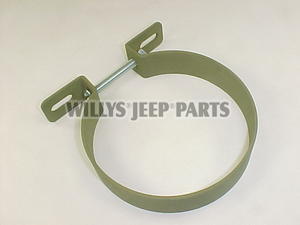

RPL A-1251-R



CLAMP, WITH SCREW, LOCK WASHER  AND SQUARE NUT, 2 REQD. USA MADE.

MB/GPW CJ-2A M38/M38A1
$ 22.50

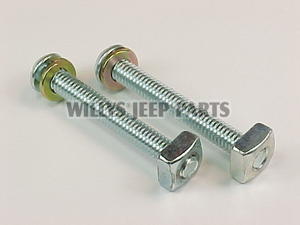

RPL 133129



SCREW, LOCKWASHER AND SQUARE NUT, OIL FILTER CLAMP, 2 REQD.

MB/GPW CJ-2A M38/M38A1
$ 2.50 EA.
T/O A-1274



BRACKET, MOUNTING ASSEMBLY ORIGINAL USA MADE, MOUNTS ON CYLINDER HEAD.

MB/GPW CJ-2A M38/M38A1
$ 48.50
RPL A-1274-R



BRACKET, MOUNTING ASSEMBLY, OFF SHORE BRAND, MOUNTS ON CYLINDER HEAD



MB/GPW CJ-2A M38/M38A1
$ 36.50
RPL 638635-K



MOUNTING KIT, OIL FILTER MOUNTING BRACKET TO CYLINDER HEAD, INCLUDES HEAD BOLTS, HEAD STUD NUTS AND FLAT WASHERS, GRADE 8, YELLOW ZINC PLATED.



MB/GPW CJ-2A M38/M38A1
$ 10.50
RPL 51396K



MOUNTING KIT, OIL FILTER TO BRACKET, INCLUDES BOLTS, FLAT WASHERS AND LOCK WASHERS, YELLOW ZINC PLATED



MB/GPW CJ-2A M38/M38A1
$ 4.50
RPL A-1197-R



LINE, FLEXIBLE, OIL FILTER INLET, 21 1/2" LONG, WITH TWO MALE FLARED ENDS, ATTACHES TO TOP OF OIL FILTER AND ENGINE BLOCK BELOW FUEL PUMP.



MB/GPW CJ-2A M38/M38A1
$ 12.50
OEM A-1289



 CLIP AND LOOM, OIL INLET LINE TO FRONT ENGINE PLATE, INCLUDES THE PROTECTIVE CLOTH LOOM, 1/2" DIA., WITH 3/8" BOLT HOLE.

MB/GPW CJ-2A M38/M38A1
$ 2.50
OEM 662276



GROMMET, OIL FILTER INLET LINE THROUGH OIL FILTER MOUNTING BRACKET.

MB/GPW CJ-2A M38/M38A1
$ 3.75
RPL A-1198-R



LINE, FLEXIBLE, OIL FILTER INLET, 10 1/4" LONG, WITH TWO MALE FLARED ENDS, ATTACHES TO BOTTOM OF FILTER AND ENGINE TIMING COVER.



MB/GPW CJ-2A M38/M38A1
$ 9.50
OEM 387891



CONNECTOR, BRASS, OIL FILTER INLET TO TOP SIDE OF FILTER CASE.

MB/GPW CJ-2A M38/M38A1
$ 3.75
OEM 384569



ELBOW, 90°, BRASS, OIL FILTER OUTLET LINE TO BOTTOM OF CASE AND SIDE OF ENGINE BLOCK, 2 REQD.

MB/GPW CJ-2A M38/M38A1
$ 3.75
OEM A-1237



PLUG, DRAIN BRASS, BOTTOM OF FILTER CASE.

MB/GPW CJ-2A M38/M38A1
$ 3.75


  A-6818

$ 175.00

    A-1231
$ 48.50


A-1232-K
$ 4.50

A-1233 $ 2.25 EA.


A-1236/119952
$ 18.50

A-1235
$ 2.50 EA.


A-1234
$ 16.50

A-1251-R
$ 22.50


133129
$ 2.50 EA.

A-1274-R
$ 36.50


638635-K
$ 10.50

51396-K
$ 4.50


A-1197-R
$ 12.50

A-1289 CLIP AND LOOM
$ 2.50


662276
$ 3.75 EA.

A-1198-R
$ 9.50

387891
$ 3.75 EA.
384569
$ 3.75 EA.

A-1237 $ 3.75 EA.
