22-03 REAR AXLE DIFFERENTIALS

TYPICAL REAR AXLE DIFFERENTIAL ASSEMBLY

22-03A REAR AXLE DIFFERENTIAL CASE AND OEM TIMKEN BEARINGS

OEM REBUILT DIFFERENTIAL CASES

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
R/B	A-793	CASE, DIFFERENTIAL, MODEL 23 REAR AXLE, 8 BOLTS, 8 RIBS, CASTING #16384, 6 3/8" OD, 6 5/16 OAL, USES CARRIER BEARING 52979, 1" THICK.	MB/GPW EARLY CJ-2A 2WD VJ/SW/SD DJ-3A FJ-3/FJ-3A	$ 225.00
R/B	GP-4206	CASE, DIFFERENTIAL, MODEL 23 REAR AXLE, 8 BOLTS, 8 RIBS, CASTING #16384, FORD SCRIPT, 6 3/8" OD, 6 5/16 OAL, USES CARRIER BEARING 52979, 1" THICK.	MB/GPW	$ 225.00
R/B	639967	CASE, DIFFERENTIAL, MODEL 41 REAR AXLE, 10 BOLTS, 6 RIBS, CASTING #13828, 7 3/8" OD, 7" OAL USES CARRIER BEARING 52979, 1" THICK.	LATE CJ-2A/3A	$ 375.00
R/B	802562	CASE, DIFFERENTIAL, MODEL 44 REAR AXLE, 10 BOLTS, 10 RIBS, CASTING #18459, 7 1/2" OD, 7 1/8" OAL, USES CARRIER BEARING 52979, 1" THICK.	CJ-3B/5/6 M38/M38A1 FC-150/SW/SD J-SERIES	$ 225.00
R/B	935640	CASE, DIFFERENTIAL, MODEL 44 REAR AXLE, 10 BOLTS, 10 RIBS, CASTING #18423, 7 1/2" OD, 7 1/8" OAL, USES CARRIER BEARING 52979, 1" THICK.	LATE CJ-3B/5/6	$375.00
R/B	934934	CASE, DIFFERENTIAL, MODEL 27 REAR AXLE, 8 BOLTS, 8 RIBS, FOR 3.73 TO 1 RATIO AND SMALLER, CASTING #18602, 6 3/8" OD, 6 3/16 OAL, USES CARRIER BEARING 926799, 3/4" THICK.	LATE DJ-3A/5/6	$ 225.50
R/B	908623	CASE, DIFFERENTIAL, MODEL 53 REAR AXLE, 12 BOLTS, 12 RIBS, CASTING #C30243X, 8" OD, 7 7/8" OAL, USES CARRIER BEARING 805311, 1" THICK.	4WD PU FC-170 J-SERIES	$ 450.00

NOTE- Our rebuilt OEM differential cases listed above have all been degreased, bead blasted and thoroughly inspected for damage. The bearing sufaces have been polished. All of these parts were made in America with American iron by Americans.


A-793	$ 225.00


639967	$ 375.00


802562	$ 225.00


934934	$ 225.00


908326	$ 450.00

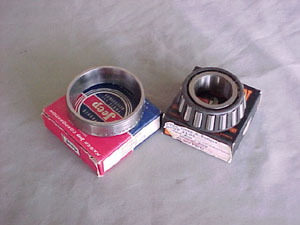

OEM TIMKEN DIFFERENTIAL BEARINGS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
OEM	52880	CONE AND ROLLERS, DIFFERENTIAL BEARING, MODEL 23 AXLE, TIMKEN USA BRAND.	4-63/4-75/6-85/6-75 VJ/SW/SD/DJ-3A	$ 46.50
OEM	52979	CONE AND ROLLERS, DIFFERENTIAL BEARING, MODEL 41 AND 44 AXLE, TIMKEN USA BRAND.	LATE CJ-2A/3A/3B 5/6 FC-150 M38/M38A1 4-75 VJ/SW/SD L-6-226 SW/DJ-3A	$ 43.50
OEM	805311	CONE AND ROLLERS, DIFFERENTIAL BEARING, MODEL 53 AXLE, TIMKEN USA BRAND.	UTILITY PICKUP/FC-170 LATE CJ-5/6 JEEPSTER COMMANDO J-SERIES	$ 28.50
OEM	926799	CONE AND ROLLERS, DIFFERENTIAL BEARING, MODEL 27 AXLE, TIMKEN USA BRAND.	LATE DJ-3A/5/6	$ 20.50
OEM	52881	CUP, DIFFERENTIAL BEARING, MODEL 23 AXLE, TIMKEN USA BRAND.	4-63/4-75/6-85/6-75 VJ/SW/SD/DJ-3A	$ 52.50
OEM	52980	CUP, DIFFERENTIAL BEARING, MODEL 41 AND 44 AXLE, TIMKEN USA BRAND.	LATE CJ-2A/3A 3B/5/6 FC-150 M38/M38A1 4-75 VJ/SW/SD L-6-226 SW/DJ-3A	$ 19.50
OEM	805312	CUP, DIFFERENTIAL BEARING, MODEL 53 AXLE, TIMKEN USA BRAND.	UTILITY PICKUP/FC-170 LATE CJ-5/6 JEEPSTER COMMANDO J-SERIES	$ 130.50
OEM	926800	CUP, DIFFERENTIAL BEARING, MODEL 27 AXLE, TIMKEN USA BRAND.	LATE DJ-3A/5/6	$ 45.50


TYPICAL TIMKEN BEARING CONE


TYPICAL TIMKEN BEARING CUP

22-03B REAR AXLE DIFFERENTIAL PARTS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

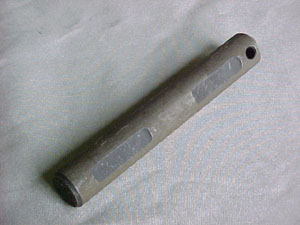

OEM	A-798 636464	SHAFT, PINION MATE, 4 1/8" LONG MODEL 23 AND 27 AXLE	2WD VJ/SW/SD/DJ-3A	$ 22.50
OEM	636553	SHAFT, PINION MATE, 5" LONG. MODEL 41 AND 44 AXLE.	CJ-2A/3A/3B/5/6 M38/M38A1 FC-150/SW/SD	$ 22.50
OEM	805327	SHAFT, PINION MATE, 5" LONG MODEL 53 AXLE.	PU/FC-170	$ 38.50

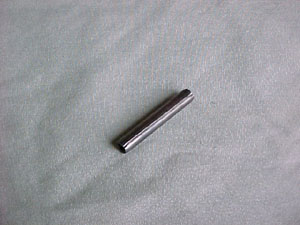

OEM	636360	PIN, SHAFT LOCK, MODEL 23,27,41,44 AND 53 AXLE.	ALL VEHICLES	$ 1.50

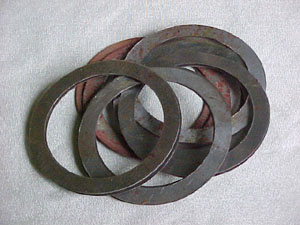

OEM	648061	SHIM SET, DIFFERENTIAL BEARING ADJUST, MODEL 23,25,27,41 AND 44 AXLE, SPICER USA BRAND.	ALL VEHICLES	$ 26.50
OEM	994267	KIT, REPAIR, DIFFERENTAL GEARS, MODEL 44 AXLE WITH 30 SPLINE AXLE SHAFTS	LATE CJ-5/6 DJ-5/6	$ 202.50
OEM	806483	SHIM SET, DIFFERENTIAL BEARING ADJUST, MODEL 53 AXLE, SPICER USA BRAND.	SW/SD/PU FC-170	$ 16.50
NOS	919619 NOS	SHIM SET, DIFFERENTIAL BEARING ADJUST, MODEL 53 AXLE.	FC 170 WITH DUAL REAR WHEEL AXLE	$ 62.50
T/O	640965	SPACER, AXLE SHAFT (CENTER BLOCK), MODEL 41 AXLE.	CJ-2A/3A	$ 26.50
T/O	641384	SPACER, AXLE SHAFT (CENTER BLOCK), MODEL 23 AND 27 AXLE.	2WD VJ/SW/SD DJ-3A	$ 26.50
T/O	649356	SPACER, AXLE SHAFT, (CENTER BLOCK), MODEL 44 AXLE.	ALL VEHICLES	$ 26.50
T/O	908329	SPACER, AXLE SHAFT, (CENTER BLOCK), MODEL 53 AXLE.	PU/FC-170	$ 36.50


A-798/636464	$ 22.50


636553	$ 22.50


805327	$ 38.50


636360	$ 1.50


648061	$ 26.50


806483	$ 16.50


919619	$ 62.50


640965	$ 26.50


641384	$ 26.50


649356	$ 26.50


908329	$ 36.50

22-03C REAR AXLE DIFFERENTIAL SIDE GEARS AND PARTS

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE

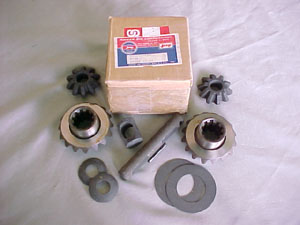

OEM	926544	KIT, REPAIR DIFFERENTIAL GEARS, MODEL 23 AND 27 AXLE, WITH 10 SPLINE AXLE SHAFTS.	MB/GPW/CJ-2A 2WD VJ/SW/SD	$ 94.50
NOS	GPW-18389 NOS	GEAR KIT, DIFFERENTIAL CASE GEARS, MODEL 23 AND 27 AXLE, FORD BRAND, WITH 10 SPLINE AXLE SHAFTS.	MB/GPW/CJ-2A 2WD VJ/SW/SD	$ 175.00
T/O	647063	KIT, REPAIR, DIFFERENTIAL GEARS, MODEL 41 AXLE, WITH 10 SPLINE AXLE SHAFTS.	CJ-2A/3A	$ 198.50
OEM	802260	KIT, REPAIR, DIFFERENTIAL SIDE GEARS, MODEL 44 AXLE WITH 10 SPLINE AXLE SHAFT.	CJ-3A/3B/5/6/M38 M38A1/FC-150/SW/SD	$ 202.50
OEM	916361	KIT, REPAIR, DIFFERENTIAL GEARS, MODEL 44 AXLE WITH 19 SPLINE AXLE SHAFTS.	CJ-3B/5/6/FC-150 6-226 SW/SD	$ 148.50
OEM	994267	KIT, REPAIR, DIFFERENTIAL GEARS, MODEL 44 AXLE WITH 30 SPLINE AXLE SHAFTS.	LATE CJ-5/6 DJ-5/6	$ 202.50
OEM	908333	KIT, REPAIR, DIFFERENTIAL GEARS, MODEL 53 AXLE, WITH 20 SPLINE AXLE SHAFTS.	UTILITY PU/FC-170	$ 210.50
OEM	998679	KIT, REPAIR, DIFFERENTIAL GEARS, MODEL 44 AXLE WITH 30 SPLINE AXLE SHAFTS.	4WD PU WITH OHC-6-230 ENGINE	$ 375.50


926544	$ 86.50


GPW-18389	$ 175.00

PREFIX	PART NO.	DESCRIPTION	APPLICATION	PRICE
T/O	647061	GEAR, DIFFERENTIAL SIDE, 16 TEETH, 10 SPLINES, MODEL 41 AND EARLY MODEL 44 AXLE.	CJ-2A/3A/3B	$ 68.50
T/O	908327	GEAR, DIFFERENTIAL SIDE, 14 TEETH, 20 SPLINES, MODEL 53 AXLE.	FC-170/L-6-226 PU	$ 86.50
T/O	908328	GEAR, DIFFERENTIAL PINION MATE, 10 TEETH, 3/4" HOLE, MODEL 53 AXLE.	FC-170/L-6-226 PU	$ 86.50

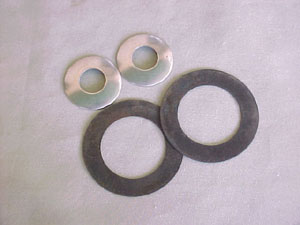

OEM	A-795 636909	THRUST WASHER, SIDE GEAR, 2 3/8" O.D. 1 1/2" I.D., MODEL 23 AND 27 AXLE.	MB/GPW/CJ-2A 2WD VJ/SW/SD	$ 1.40
OEM	A-797 637235	THRUST WASHER, PINION MATE, 1 3/8" O.D., 5/8 I.D., MODEL 23 AND 27 AXLE.	MB/GPW/CJ-2A 2WD VJ/SW/SD	$ 1.40
OEM	636551 645789	THRUST WASHER, SIDE GEAR, 2 13/16" O.D., 1 5/8" I.D., MODEL 44 AXLE.	CJ-3A/3B/5/6/M38/M38A1 FC-150/SW/SD	$ 1.25
OEM	805325	THRUST WASHER, SIDE GEAR, 2 13/16 O.D., 1 3/4" I.D., MODEL 53 AXLE, SPICER BRAND, MADE IN THE USA.	FC-170/6-226 PU	$ 4.50
OEM	636554 645790	THRUST WASHER, PINION MATE, 1 5/8" O.D., 5/8" I.D., MODEL 41,44 AND 53 AXLE.	CJ-3A/3B/5/6 M38/M38A1 FC-150/FC-170 SW/SD/PU	$ 1.75


647061	$ 68.50


908327	$ 86.50


908327	$ 86.50


A-795/636909	$ 1.40


A-797/637235	$ 1.40


636551/645789	$ 1.25


805325	$ 4.50


636554/645790	$ 1.75

22-03D POWR-LOK DIFFERENTIAL AND PARTS

PREFIX

PART NO.

DESCRIPTION

APPLICATION

PRICE

T/O

916775

DIFFERENTIAL ASSEMBLY, (POWR-LOK), FOR USE WITH 19 SPLINE ASSEMBLY.

CJ-3B/5/6 SW/SD FC-150/DJ-3A

$ 375.00

OEM

925339

DISC AND PLATE KIT FOR MODEL 44 AND 53 POWR-LOCK DIFFERENTIAL.

CJ-2A/3B/5/6 FC-150/FC-170 M38/M38A1 4WD SW/SD/PU

$ 124.50

925339

$ 124.50
