| 22-04 REAR AXLE RING AND PINIONS |
| 22-04A REAR AXLE DRIVE GEARS AND PINIONS |
| |
NOTE-
|
ALL OF OUR RING AND PINION SETS INCLUDE NEW PINION NUTS, FLAT WASHERS AND COTTER PINS AS REQUIRED. |
|
| |
NOTE-
|
WE NO LONGER ACCEPT CREDIT CARDS FOR ANY RING AND PINION SETS. WE WILL ACCEPT MONEY ORDERS AND CHECKS. |
|
|
| |
 |

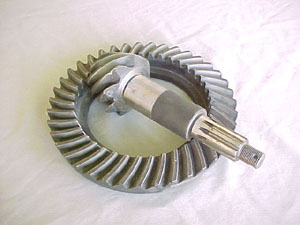

| TYPICAL DRIVE GEAR AND PINION SET |
|
| |
| RING AND PINION SETS FOR MODEL 23 AND 25 REAR AXLES |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| R/B |
A-789 801925 R/B
|
DRIVE GEAR AND PINION, 39-8 TOOTH, 4.88:1 RATIO, MODEL 23 & 25 AXLE, RING GEAR, 7 3/4" O.D. X 4 1/4" I.D. X 3/4" THICK, PINION GEAR 8 1/4" OAL, 8 BOLTS SPICER, DANA AND SALISBURY BRANDS.
|
4-63/4-7/6-85/6-75 VJ/SW/SD
|
$ 375.00
|
| RPL |
801925-R
|
DRIVE GEAR AND PINION, 39-8 TOOTH, 4.88:1 RATIO, MODEL 23 & 25 AXLE, RING GEAR, 7 3/4" O.D. X 4 1/4" I.D. X 3/4" THICK, PINION GEAR 8 1/4" OAL, 8 BOLTS , OFFSHORE BRAND.
|
4-63/4-7/6-85/6-75 VJ/SW/SD
|
$ 255.50
|
| R/B |
GPW4209 R/B
|
DRIVE GEAR AND PINION, 39-8 TOOTH, 4.88:1 RATIO, MODEL 23 & 25 AXLE, RING GEAR, 7 3/4" O.D. X 4 1/4" I.D. X 3/4" THICK, PINION GEAR 8 1/4" OAL, 8 BOLTS SPICER, FORD BRAND.
|
4-63/4-7/6-85/6-75 VJ/SW/SD |
$ 375.00
|
R/B
|
16420
|
DRIVE GEAR ONLY, 39 TEETH, FOR USE WITH 4.88:1 RING AND PINON SETS.
|
4-63/4-7/6-85/6-75 VJ/SW/SD |
$ 125.00 |
R/B
|
A-5835 640698 801928 R/B
|
DRIVE GEAR AND PINION, 43-8 TOOTH, 5.38: RATIO, MODEL 23 & 25 AXLE, RING GEAR 7 3/4" O.D. X 4 1/4" I.D. X 7/8" THICK, PINION GEAR 8 1/4" OAL, 8 BOLTS, SPICER, DANA AND SALISBURY BRANDS.
|
4-63/4-7/6-85/6-75 VJ/SW/SD |
$ 375.00 |
|
| |
| |
| RING AND PINION SETS FOR MODEL 27 REAR AXLES |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| R/B |
926801 |
DRIVE GEAR AND PINION, 41-9
TOOTH, 4:56:1 RATIO, MODEL 27 AXLE, 8 BOLTS, DANA BRAND, 26 SPLINE, PINION GEAR.
|
DJ/3A/5/6 FJ-3A
|
$ 475.00 |
| R/B |
927707 |
DRIVE GEAR AND PINION, 47-11
TOOTH, 4:56:1 RATIO, MODEL 27 AXLE, 8 BOLTS, DANA BRAND, 26 SPLINE, PINION GEAR.
|
DJ/3A/5/6 FJ-3A
|
$ 475.00 |
| R/B |
933901 |
DRIVE GEAR AND PINION, 39-8
TOOTH, 4.88: 1 RATIO, MODEL 27 AXLE, 8 BOLTS, DANA BRAND, 26 SPLINE, PINION GEAR.
|
DJ/3A/5/6 FJ-3A
|
$ 475.00 |
| R/B |
933992 |
DRIVE GEAR AND PINION, 41-10
TOOTH, 4:10:1 RATIO, MODEL 27 AXLE, 8 BOLTS, DANA BRAND, 26 SPLINE, PINION GEAR.
|
DJ/3A/5/6 FJ-3A
|
$ 475.00 |
| R/B |
934894 |
DRIVE GEAR AND PINION, 41-11
TOOTH, 3:73: 1 RATIO, MODEL 27 AXLE, 8 BOLTS, DANA BRAND, 26 SPLINE, PINION GEAR.
|
DJ/3A/5/6 FJ-3A
|
$ 475.00 |
| R/B |
936166 |
DRIVE GEAR AND PINION, 43-8
TOOTH, 5.38:1 RATIO, MODEL 27 AXLE, RING GEAR, 7 3/16" O.D. X 4 1/4" I.D., 1 1/4" THICK, PINION 8 3/8" OAL., 8 BOLTS, DANA BRAND, 26 SPLINE, PINION GEAR.
|
DJ/3A/5/6 FJ-3A
|
NLA |
|
| |
| |
| RING AND PINION SETS FOR MODEL 41 REAR AXLES |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| R/B |
641244 |
DRIVE GEAR AND PINION, 43-8
TOOTH, 5.38 TO 1 RATIO, 10 SPLINE PINION, MODEL 41
AXLE, RING GEAR 9 1/4" O.D. X 4 15/16" X 7/8" THICK, PINION GEAR 8 1/2" OAL, 10 BOLTS.
|
CJ-2A/CJ-3A 2WD TRUCK
|
$ 650.00 |
|
| |
| |
RING AND PINION SETS FOR EARLY MODEL 44 REAR AXLES
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
802568 |
DRIVE GEAR AND PINION, 43-8
TOOTH, 5.38 TO 1 RATIO, 10 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
CJ-3A/3B/5/6 FC-150/M38
M38A1/4-75 VJ/SW/SD
L-6-226 SW |
$ 600.00 |
| R/B |
802568 R/B
|
DRIVE GEAR AND PINION, 43-8
TOOTH, 5.38 TO 1 RATIO, 10 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
CJ-3A/3B/5/6 FC-150/M38
M38A1/4-75 VJ/SW/SD
L-6-226 SW |
$ 375.00 |
| OEM |
907062 |
DRIVE GEAR AND PINION, 44-9
TOOTH, 4.89 TO 1 RATIO, 10 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
CJ-3A/3B/5/6 FC-150/M38
M38A1/4-75 VJ/SW/SD
L-6-226 SW |
$ 625.00 |
| RPL |
907062 -R
|
DRIVE GEAR AND PINION, 44-9
TOOTH, 4.89 TO 1 RATIO, 10 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
CJ-3A/3B/5/6 FC-150/M38
M38A1/4-75 VJ/SW/SD
L-6-226 SW |
$ 375.00 |
| RPL |
910073-R |
DRIVE GEAR AND PINION, 47-11
TOOTH, 4.27 TO 1 RATIO, 10 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
CJ-3A/3B/5/6 FC-150/M38
M38A1/4-75 VJ/SW/SD
L-6-226 SW |
$ 385.50
|
| R/B |
910073 R/B
|
DRIVE GEAR AND PINION, 47-11
TOOTH, 4.27 TO 1 RATIO, 10 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
CJ-3A/3B/5/6 FC-150/M38
M38A1/4-75 VJ/SW/SD
L-6-226 SW |
$ 375.00
|
| RPL |
937824-R |
DRIVE GEAR AND PINION, 41-11
TOOTH, 3.73 TO 1 RATIO, 10 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
CJ-3A/3B/5/6 FC-150/M38
M38A1/4-75 VJ/SW/SD
L-6-226 SW |
CALL |
| RPL |
934154-R |
DRIVE GEAR AND PINION, 46-13
TOOTH, 3.54 TO 1 RATIO, 26 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
SW/SD WITH OHC-6-230 ENGINE
|
CALL |
| R/B |
934154 R/B
|
DRIVE GEAR AND PINION, 46-13
TOOTH, 3.54 TO 1 RATIO, 10 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
SW/SD WITH OHC-6-230 ENGINE |
$ 650.00
|
|
| |
| |
RING AND PINION SETS FOR LATE MODEL 44 REAR AXLES
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
935650 |
DRIVE GEAR AND PINION, 41-11
TOOTH, 3.73 TO 1 RATIO, 26 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
LATE CJ-5/6 |
$ 568.50 |
| OEM |
935652 |
DRIVE GEAR AND PINION, 47-11
TOOTH, 4.27 TO 1 RATIO, 26 SPLINE PINION, MODEL 44 AXLE, 10 BOLTS.
|
LATE CJ-5/6 |
$ 725.00 |
|
| |
| NOTE- Our model 44 ring and pinion sets with the 26 spline pinion gears can be used on all early model 44 axles. All of the bearings, shims and seals are the same. The only part required will be the 26 spline rear axle yoke part number 935685 go to Subgroup 19-05B REAR AXLE YOKES to see this. |
|
| |
| RING AND PINION SETS FOR MODEL 53 REAR AXLES |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| R/B |
805339 |
DRIVE GEAR AND PINION, 43-8
TOOTH, 5.38 TO 1 RATIO, 10 SPLINE PINION, MODEL 53
AXLE, #18721 RING GEAR, 9 1/4" O.D., 5 9/16" I.D., 1 7/16" THICK, #18720 PINION GEAR, 9 1/8" O.A.L., 12 BOLTS, SALISBURY BRAND.
|
UTILITY PICKUP FC-170 |
$ 375.00 |
| NOS |
805339 NOS
|
DRIVE GEAR AND PINION, 43-8
TOOTH, 5.38 TO 1 RATIO, 10 SPLINE PINION, MODEL 53
AXLE, #18731 RING GEAR, 9 1/4" O.D., 5 9/16" I.D., 1 7/16" THICK, #18720 PINION GEAR, 9 1/8" O.A.L., 12 BOLTS, SALISBURY BRAND.
|
UTILITY PICKUP FC-170 |
$ 450.00
|
| R/B |
908331 |
DRIVE GEAR AND PINION, 39-8
TOOTH, 4.88 TO 1 RATIO, 10 SPLINE PINION, MODEL 53
AXLE, #30245 RING GEAR, 9 1/4" O.D., 5 9/16" I.D., 1 7/16" THICK, #30244 PINION GEAR, 9 1/8" O.A.L., 12 BOLTS, DANA BRAND.
|
UTILITY PICKUP FC-170 |
$ 375.00 |
| NOS |
908331 NOS
|
DRIVE GEAR AND PINION, 39-8
TOOTH, 4.88 TO 1 RATIO, 10 SPLINE PINION, MODEL 53
AXLE, #30245 RING GEAR, 9 1/4" O.D., 5 9/16" I.D., 1 7/16" THICK, #30244 PINION GEAR, 9 1/8" O.A.L., 12 BOLTS, DANA BRAND.
|
UTILITY PICKUP FC-170 |
$ 450.00
|
| R/B |
910070 |
DRIVE GEAR AND PINION, 47-11
TOOTH, 4.27 TO 1 RATIO, 10 SPLINE PINION, MODEL 53
AXLE, #18691 RING GEAR, 9 1/4" O.D., 5 9/16" I.D., 1 5/16" THICK, #18690 PINION GEAR, 9 1/8" O.A.L., 12 BOLTS, DANA BRAND.
|
UTILITY PICKUP FC-170 |
$ 375.00 |
NOS
|
910070 NOS
|
DRIVE GEAR AND PINION, 47-11
TOOTH, 4.27 TO 1 RATIO, 10 SPLINE PINION, MODEL 53
AXLE, #18691 RING GEAR, 9 1/4" O.D., 5 9/16" I.D., 1 5/16" THICK, #18690 PINION GEAR, 9 1/8" O.A.L., 12 BOLTS, DANA BRAND.
|
UTILITY PICKUP FC-170 |
$ 475.00
|
|
| |
| 22-04B REAR AXLE OEM TIMKEN PINION BEARINGS AND PARTS |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
52876 |
CONE AND ROLLERS, PINION BEARING INNER, REAR, MODEL 23/41/44 REAR AXLES, TIMKEN USA BRAND.
|
ALL VEHICLES |
$ 48.50 |
| OEM |
52877 |
CUP, PINION BEARING, INNER, REAR,
MODEL 23/27/41/44 REAR AXLES, TIMKEN USA BRAND.
|
ALL VEHICLES |
$ 17.50 |
| OEM |
52878 |
CONE AND ROLLERS, PINION BEARING OUTER, FRONT, MODEL 23/27/41/44/53 REAR AXLES, TIMKEN USA BRAND.
|
ALL VEHICLES |
$ 38.50 |
| OEM |
52879 |
CUP, PINION BEARING, OUTER, FRONT, MODEL 23/27/41/44/53 REAR AXLES, TIMKEN USA BRAND.
|
ALL VEHICLES |
$ 17.50 |
| OEM |
805328 |
CONE AND ROLLERS, PINION BEARING INNER, REAR, MODEL 53 REAR AXLES, TIMKEN USA BRAND.
|
UTILITY PICKUP
FC-170 |
$ 52.50
|
| OEM |
805329 |
CUP, PINION BEARING, INNER, REAR
MODEL 53 REAR AXLES, TIMKEN USA BRAND.
|
UTILITY PICKUP
FC-170 |
$ 22.50
|
| OEM |
807266 |
CONE AND ROLLERS, PINION BEARING INNER, REAR, MODEL 27/44 REAR AXLES, TIMKEN USA BRAND.
|
CJ-3B/5/6/FC-150
M38/M38A1/DJ-3A
VJ/SW/SD |
$ 43.50 |
| OEM |
926802 |
CONE AND ROLLERS, PINION BEARING OUTER, REAR, MODEL 27 AXLE, TIMKEN USA BRAND.
|
DJ-5/6 |
$ 28.50 |
| OEM |
926805 |
CUP, PINION BEARING INNER, REAR, MODEL 27 AXLE, TIMKEN USA BRAND.
|
DJ-5/6 |
$ 17.50 |
| OEM |
926803 |
CONE AND ROLLERS, PINION BEARING INNER, REAR, MODEL 27 AXLE, TIMKEN USA BRAND.
|
DJ-5/6 |
$ 43.50 |
| OEM |
945739 |
CUP, PINION BEARING OUTER, INNER REAR, MODEL 27 AXLE, TIMKEN USA BRAND.
|
DJ-5/6 |
$ 16.50 |
|
| |
| |
 |

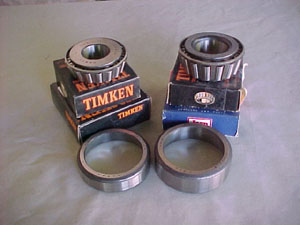

TYPICAL TIMKEN BEARING CONE
|
|
 |
| TYPICAL TIMKEN BEARING CUP |
|
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |

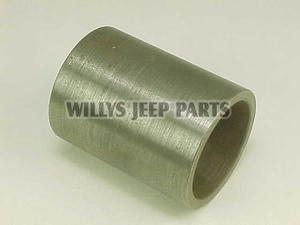

| T/O |
A-799 639968 |
SPACER, PINION BEARING, MODEL 23/27/41/44/53 REAR AXLES, SPICER SP-15367.
|
ALL VEHICLES
|
$ 32.50 |
| OEM |
649228 |

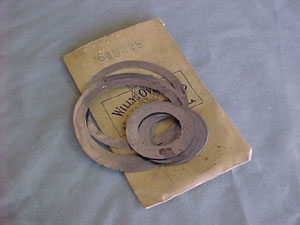

SHIM SET, PINION BEARINGS,
MODEL 25/41/44 REAR AXLES, SPICER BRAND, MADE IN THE USA.
|
ALL VEHICLES
|
$ 19.50 |
| NOS |
919620 NOS
|
SHIM SET, PINION BEARING,
MODEL 53 REAR AXLE.
|
FC-170 WITH DUAL WHEEL REAR AXLE
|
$ 38.50 |
| OEM |
929408 |
SHIM SET, PINION BEARINGS ,
MODEL 27 REAR AXLES, SPICER BRAND, MADE IN THE USA.
|
DJ-3A
|
$ 26.50 |
| OEM |
806482 |
SHIM SET, PINION BEARINGS,
MOD. 53 REAR AXLES.
|
UTILITY PICKUP
FC-170 |
$ 32.50 |

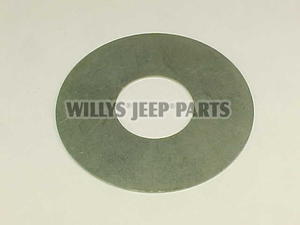

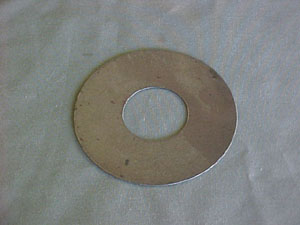

| OEM |
636566 908301
|
OIL SLINGER, PINION BEARING,
MODEL 23/27/41/44 REAR AXLES, SPICER BRAND, MADE IN THE USA.
|
ALL VEHICLES |
$ 3.50 |
| OEM |
916372 |
OIL SLINGER, PINION BEARING, MODEL 27 REAR AXLES.
|
DJ-3A
|
$ 4.50 |
|
| |
 |
| A-799/639968 |
$ 32.50 |
|
 |
| 649228 |
$ 19.50 |
|
|
| |
 |
| 929408 |
$ 26.50 |
|
 |
| 919620-NOS |
$ 38.50 |
|
|
| |
 |
| 636566 |
$ 3.50 |
|
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |

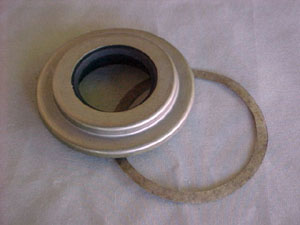

| OEM |
639265 |
OIL SEAL, PINION, SPICER BRAND, SPICER BRAND, MADE IN THE USA.
|
ALL VEHICLES |
$ 10.50 |
| RPL |
639265-R |
OIL SEAL, PINION.
|
ALL VEHICLES |
$ 5.25
|
| NOS |
636565 NOS
|
GASKET, PINION OIL SEAL.
|
ALL VEHICLES |
$ 3.50 |
| RPL |
636565 |
GASKET, PINION OIL SEAL.
|
ALL VEHICLES |
$ 2.00
|
| OEM |
99155 |
REDI-SLEEVE KIT, USED TO REPAIR WORN OIL SEAL SURFACES ON AXLE PINION AND TRANSFER CASE OUTPUT YOKES AND FLANGES, NATIONAL USA BRAND.
|
ALL VEHICLES |
$ 46.50 |
|
| |
 |
| 639265 |
$ 10.50 |
|
 |
639265-R
|
$ 5.25
|
|
|
| |
 |
| 636565-NOS |
$ 3.50 EA.
|
|
 |
| 99155 |
$ 46.50
|
|
|
| |
| |
| PREFIX |
PART NO. |
DESCRIPTION |
APPLICATION |
PRICE |
| OEM |
636569 |
NUT, PINION, SLOTTED, 3/4"-16 GRADE 8, YELLOW ZINC PLATED, FOR USE WITH A COTTER PIN.
|
ALL VEHICLES |
$ 5.75 EA.
|
| OEM |
801367 |
*SAFETY NOTE 1
NUT, PINION, HUG LOCK 3/4"-16, GRADE 8, SPICER BRAND, MADE IN THE USA.
|
ALL VEHICLES |
$ 1.75 EA.
|
| OEM |
636570 |
WASHER, SPECIAL, PINION NUT, 3/4", 1 1/2" WIDE, 1/8" THICK, GRADE 8, SPICER BRAND, MADE IN THE USA.
|
ALL VEHICLES |
$ 1.25 EA.
|
| OEM |
5397 |
PIN, COTTER, FOR USE WITH 636569 SLOTTED NUT.
|
ALL VEHICLES |
$ 0.25 EA.
|

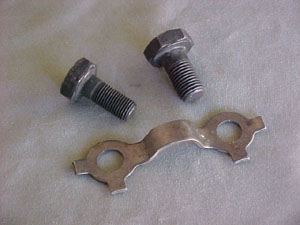

OEM
|
A-871 917292
|
*SAFETY NOTE 2
DRIVE GEAR SCREW, MODEL 23/27/44
REAR AXLE, 8 OR 10 REQD, 3/8"-24 X 13/16" LONG, SPICER BRAND, MADE IN THE USA.
|
ALL VEHICLES |
$ 1.25 EA.
|
| OEM |
636547 |
DRIVE GEAR SCREW, MODEL 41
REAR AXLE, 8 REQD, 3/8"-24, LOCK STRAP NOT REQUIRED WITH THIS SCREW.
|
LATE CJ-2A |
$ 3.50 EA
|

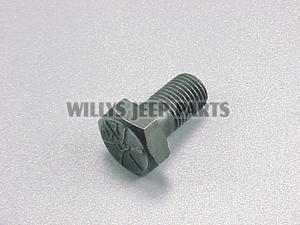

| OEM |
917275 |
DRIVE GEAR SCREW, MODEL 53
REAR AXLE, 12 REQD, 7/16"-20, LOCK STRAP NOT REQUIRED WITH THIS SCREW.
|
UTILITY PICKUP
FC-170 |
$ 3.50 EA.
|
| OEM |
A-792 |
*SAFETY NOTE 3
LOCK STRAP, DRIVE GEAR SCREW,
MODEL 23 REAR AXLE, 4 REQD.
|
VJ/SW/SD |
$ 1.50 EA.
|
| T/O |
636548 |
LOCK STRAP, DRIVE GEAR SCREW,
MODEL 41 REAR AXLE, 4 REQD.
|
LATE CJ-2A |
$ 8.50 EA.
|

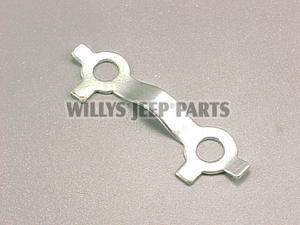

| OEM |
802561 |
*SAFETY NOTE 3
LOCK STRAP, DRIVE GEAR SCREW,
MODEL 44 REAR AXLE, 5 REQD.
|
CJ-3A/3B/5/6 FC-150
M38/M38A1 SW/SD |
$ 1.50 EA.
|
| T/O |
805322 |
LOCK STRAP, DRIVE GEAR SCREW,
MODEL 53 REAR AXLE, 6 REQD.
|
UTILITY PICKUP
FC-170 |
$ 8.50 EA.
|
|
| |
| |
 |
| 636569 |
$ 5.75 |
|
 |
| 801367 |
$ 1.75 EA.
|
|
|
| |
 |
| 636570 |
$ 1.25 EA.
|
|
 |
| A-871/917292 |
$ 1.25 EA.
|
|
|
| |
 |
| 636547 |
$ 3.50 EA.
|
|
 |
| 917275 |
$ 3.50 EA.
|
|
|
| |
 |
| A-792 |
$ 1.50 EA |
|
 |
| 802561 |
$ 1.50 EA. |
|
|
| |
|
GO TO GROUP 19 PROPELLER SHAFT FOR AXLE YOKES
|
| |
SAFETY NOTES
|
| NOTE 1......HUG-LOCK type all metal self locking nuts are designed for one time use only! If you reuse this nut it may loosen and back off of the pinion shaft. The failure of this nut could cause the driveshaft to fall to the ground and could cause a sudden loss of control of the vehicle. This could result in serious personal injury or death. |
| |
| NOTE 2......Ring gear DRIVE SCREWS should never be reused! If you reuse a ring gear drive screw it could loosen and back out of its threaded hole causing severe damage to the axle gears and other components. This could result in the axle suddenly "locking up" and could cause a sudden loss of control of the vehicle. This could result in serious personal injury or death. |
| |
| NOTE 3......Ring gear drive screw LOCK STRAPS are designed for one time use only! The tabs on the lock straps are designed to be bent over the drive screw head one time only. If you reuse a lock strap the drive screw could loosen and back out of its threaded hole causing severe damage to the axle gears and other components. This could result in the axle suddenly "locking up" and could cause a sudden loss of control of the vehicle. This could result in serious personal injury or death. |
|
| |
| |
Product Search
