25-02  WHEEL HUBS AND BRAKE DRUMS




25-02A  WHEEL HUBS

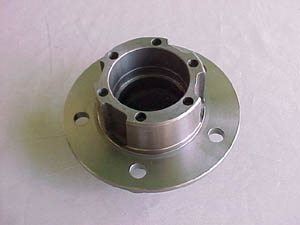

            FRONT WHEEL HUBS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
R/B 640672-R/B



 WHEEL HUB, FRONT, LEFT OR RIGHT, MADE IN THE USA.

THIS HUB IS USED WITH DRUMS MOUNTED ON THE INSIDE OF THE HUB AND HELD ON WITH THE FIVE WHEEL STUDS.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

 ALL 4WD VEHICLES $ 86.50
RPL 909548-R



WHEEL HUB, FRONT, LEFT OR RIGHT, HAS THREE HOLES FOR 1/4" SCREWS. CAN BE USED WITH DRUMS MOUNTED INSIDE OR OUTSIDE THE HUB, OFFSHORE BRAND.



 ALL 4WD VEHICLES $ 97.50
R/B 909548-R/B



 WHEEL HUB, FRONT, LEFT OR RIGHT, MADE IN THE USA. HAS THREE HOLES FOR 1/4" SCREWS. CAN BE USED WITH DRUMS MOUNTED INSIDE OR OUTSIDE THE HUB.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

THIS HUB IS USED WITH DRUMS MOUNTED ON THE INSIDE OF THE HUB AND HELD ON WITH THE FIVE WHEEL STUDS.

 ALL 4WD VEHICLES $ 88.50
RPL 927348-R



WHEEL HUB, FRONT, LEFT OR RIGHT, FOR USE WITH LM501349 WHEEL BEARING CUPS.



LATE CJ-3B/5/6 JEEPSTER COMMANDO J-SERIES
$ 105.50
R/B 641540-R/B



 WHEEL HUB, FRONT, LEFT OR RIGHT.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

  2WD      VJ/SW/SD      WITH PLANAR SUSPENSION

$ 225.00
R/B 642540-R/B



 WHEEL HUB, FRONT, LEFT OR RIGHT.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

  2WD      PU/SW/SD WITH "I" BEAM FRONT AXLE

$ 225.00
R/B 803055-R/B



 WHEEL HUB, FRONT, LEFT OR RIGHT.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

        DJ-3A       WITH "I" BEAM FRONT AXLE

$ 225.00
R/B 925953-R/B



 WHEEL HUB, FRONT, LEFT OR RIGHT.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

        FJ-3/FJ-3A       WITH "I" BEAM FRONT AXLE

$ 225.00


  909548-R

$ 97.50

    640672-R/B

$ 86.50




641540-R/B $ 225.00

642540-R/B $ 225.00


803055-R/B $  225.00
925953 $ 225.00


            REAR WHEEL HUBS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL 909548-R



WHEEL HUB, REAR, LEFT OR RIGHT, NO NAME BRAND.



 MB/GPW  EARLY CJ-2A $ 97.50
R/B 640672-R/B



 WHEEL HUB, REAR, KELSEY-HAYES BRAND, MARKED: PFC KH 28911. LEFT OR RIGHT.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

MB/GPW  EARLY CJ-2A $ 86.50
R/B 640864-R/B



WHEEL HUB, REAR, LEFT OR RIGHT, KELSEY-HAYES BRAND, MARKED: PFC KH 28911.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

   CJ-2A/3A        SW/SD       FC-150
$ 86.50
R/B 641546-R/B



 WHEEL HUB, REAR.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

 2WD   VJ/SW/SD
CALL
R/B 803034-R/B



 WHEEL HUB, REAR

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.

 DJ-3A  $ 225.00
RPL 811351-R



WHEEL HUB, REAR, LEFT OR RIGHT, WITH THREE 1/4" HOLES FOR DRUM TO HUB SCREWS.

NOTE- THIS HUB CAN BE USED AS A REPLACEMENT FOR 640672.

CJ-2A/3A CJ-3B/5/6 M38/M38A1 FC-150 JEEPSTER COMMANDO J-SERIES
$ 86.50
RPL 912647-R



WHEEL HUB, REAR, LEFT OR RIGHT.



 4WD PU  FC-170  J-SERIES
$ 106.50
R/B
912647-R/B



 WHEEL HUB, REAR,  LEFT OR RIGHT.

THESE HUBS HAVE BEEN BEAD BLASTED AND CHECKED FOR CRACKS AND BENDS.



4WD PU    FC-170   J-SERIES
$ 110.00


  909548-R

$ 97.50

    640672-R/B

$ 86.50




  640864-R/B

$ 86.50

    641546-R/B

CALL



803034-R/B $ 225.00
811351-R $ 86.50


912647-R
$ 106.50


25-02B  BRAKE DRUMS

           OEM AND REPLACEMENT BRAKE DRUMS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
RPL A-472-R



 DRUM, BRAKE, 9" X 1 3/4".



MB/GPW CJ-2A/3A 1/4-TON MILITARY TRAILERS
$ 158.50
OEM 808770



 DRUM, FRONT BRAKE, 9" X 1 3/4", WITH THREE DRUM TO HUB SCREW HOLES, BENDIX USA BRAND.

MB/GPW CJ-2A/3A CJ-3B/5/6 M38/M38A1 $ 75.50
OEM 994306



 DRUM, BRAKE, 10" X 2", BENDIX USA BRAND.

CJ-5/6 WITH V-6 225 ENGINE
$ 92.50
OEM 941877



 DRUM, BRAKE, 11" X 2", BENDIX USA BRAND.

 SW/SD/PU FC-150/170 $ 98.50
OEM 937606



 DRUM, BRAKE, 11" X 2", BENDIX USA BRAND.

 J-SERIES VEHICLES $ 98.50


A-472-R

$ 158.50

808770

$ 75.50



994306 $ 92.50

941877 $ 98.50


937606 $ 98.50



   OEM REBUILT USA MADE WHEEL BRAKE DRUMS

PREFIX PART NO. DESCRIPTION APPLICATION PRICE
R/B   A-472-R/B



DRUM, BRAKE, 9" X 1 3/4", KELSEY HAYES BRAND WITH THICKNESS GAGE SLOT AND RIBBED DISC.

 MB/GPW CJ-2A/3A 1/4-TON MILITARY TRAILERS
$ 110.00
R/B GP-1125-R/B



 DRUM, BRAKE, 9" X 1 3/4", FORD BRAND, WITH THICKNESS GAGE SLOT AND SCRIPT "F" LOGO.

 MB/GPW CJ-2A/3A 1/4-TON MILITARY TRAILERS $ 135.00
R/B    A-472     32734-R/B



 DRUM, BRAKE, 9" X 1 3/4", MERITOR WHEEL BRAND, WITH THICKNESS GAGE SLOT AND STAMPED: CIRCLE WITH "MW."

 MB/GPW CJ-2A/3A 1/4-TON MILITARY TRAILERS $ 110.00
R/B  808770-R/B



DRUM, BRAKE, 9" X 1 3/4", KELSEY HAYES BRAND WITH THICKNESS GAGE SLOT, AND THREE DRUM TO HUB SCREW HOLES.

CJ-3B/5/6 M38/M38A1 $ 110.00
R/B  641745-R/B



DRUM, BRAKE, 10" X  1 3/4", KELSEY HAYES BRAND WITH THICKNESS GAGE SLOT.

2WD    VJ/SW/SD
$ 110.00
R/B 803786-R/B



DRUM, FRONT BRAKE, 9" X  2", USA BRAND FOR USE WITH A FOUR STUD HUB.

         DJ-3A             $ 225.00
R/B  803791-R/B



DRUM, REAR BRAKE, 9" X  2", CENTURY USA  BRAND, FOR USE WITH A FOUR STUD HUB.

         DJ-3A
$ 225.00
R/B  925951-R/B



DRUM, REAR BRAKE, 9" X  2", FOR USE WITH A FIVE STUD HUB.

FJ-3/FJ-3A
CALL
R/B  941887-R/B



DRUM, BRAKE, 11" X 2", KELSEY HAYES BRAND.

SW/SD/PU FC-150/170 $ 100.00


A-472 R/B $ 110.00

803786-R/B
$ 225.00

925951-R/B CALL



   NOS WHEEL BRAKE DRUMS

PREFIX PART NO. DESCRIPTION APLLICATION PRICE
NOS 808769 33597 NOS



DRUM, BRAKE, 9" X 1 3/4", MERITOR WHEEL BRAND WITH THICKNESS GAGE SLOT AND THREE DRUM TO HUB SCREW HOLES, STAMPED: CIRCLE WITH "MW."

CJ/3B/5/6 M38/M38A1
$ 125.00
NOS 641745 NOS



DRUM, BRAKE, 10" X 1 3/4", KELSEY HAYES BRAND.

 2WD    VJ/SW/SD
$ 125.00
NOS 941887 NOS



DRUM, BRAKE, 11" X 2", KELSEY HAYES BRAND, WITH RIBBED DISC.

SW-SD-PU FC-150/170
$ 125.00

941887-NOS $ 125.00

 25-02C BRAKE DRUM ATTACHING PARTS

PREFIX PART NO. DESCRIPTION APLLICATION PRICE
RPL 120585K



 SCREW KIT, DRUM TO HUB, 12 EA.



 CJ-3B/5/6/M38 M38A1 $ 6.50

120585K $ 6.50

NOTE- GO TO 25-01C FOR WHEEL STUDS AND NUTS


 25-02D WHEEL HUB TO AXLE ATTACHING PARTS

PREFIX PART NO. DESCRIPTION APLLICATION PRICE
RPL A-869 641920-R



 CAP, DUST, WHEEL HUB, FRONT OR REAR.



 ALL VEHICLES $ 6.50
RPL 636374



 KEY, REAR AXLE SHAFT.



 ALL VEHICLES $ 2.50 EA.
RPL 641387



 KEY, REAR AXLE SHAFT.



 2WD SW $ 2.50 EA.
RPL 644340



 KEY, REAR AXLE SHAFT.



 4WD PU $ 2.50 EA.
RPL 803425



 KEY, REAR AXLE SHAFT.



DJ-3A $ 2.50 EA.
R/B A-868-E



 DRIVE FLANGE, FRONT AXLE, EARLY TYPE, CAST IRON, LOBED, SPICER BRAND, MADE IN THE USA.



 MB/GPW/CJ-2A $68.50
R/B A-868-L



DRIVE FLANGE, FRONT AXLE, LATE ROUND TYPE, CAST IRON, LOBED, SPICER BRAND, MADE IN THE USA.



 ALL 4WD VEHICLES $ 48.50
OEM A-904



 DRIVE FLANGE GASKET FOR EARLY A-868-E LOBED DRIVE FLANGE.

 MB/GPW/CJ-2A $ 1.50 EA.
RPL 649784



 DRIVE FLANGE GASKET FOR LATE A-868 ROUND DRIVE FLANGE.



 ALL 4WD VEHICLES $ 1.50 EA.
RPL A-760K-FT



 DRIVE FLANGE TO HUB BOLT KIT, INCLUDES 12  GRADE 8 BOLTS AND LOCKWASHERS.



 ALL 4WD VEHICLES $ 12.00

A-869/641920-R $ 6.50
TYPICAL REAR AXLE SHAFT KEY


A-868-E-R/B

$ 68.50

A-868/737110-R/B $ 48.50


A-904 $ 1.50
649784 $ 1.50



A-760K-FT $ 12.00

GO TO SUBGROUP 25-01  FOR WHEEL STUD INTALLATION TOOLS.

GO TO SUBGROUP 33-13 FOR REAR WHEEL HUB PULLERS.

GO TO SUBGROUP 24 BRAKE  FOR WHEEL BRAKE PARTS.

GO TO SUBGROUP 20 FRONT AXLE  FOR FRONT AXLE SEALS AND PARTS.

GO TO SUBGROUP 21 REAR-AXLE-1ST  FOR EARLY REAR AXLE SEALS AND PARTS.

GO TO SUBGROUP 22 REAR AXLE-2ND  FOR LATE REAR AXLE SEALS AND PARTS
